NSN 5345-01-632-3950
Part Details | ABRASIVE WHEEL
5345-01-632-3950 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.
Alternate Parts: 273884, 5345-01-632-3950, 01-632-3950, 5345016323950, 016323950
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 17, 2014 | 01-632-3950 | 02613 ( WHEEL, ABRASIVE ) |
REFERENCE DRAWINGS & PICTURES

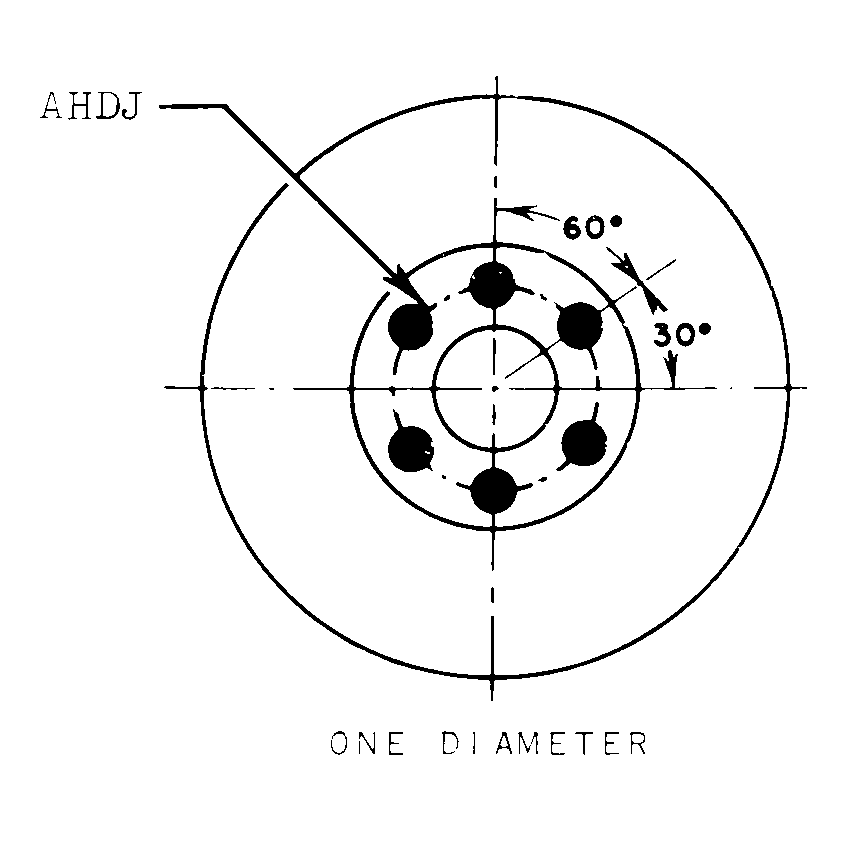

ONE DIAMETER
SAUCER
Cross Reference | NSN 5345-01-632-3950
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 273884 | 70752 | TYROLIT WICKMAN INC |
Technical Data | NSN 5345-01-632-3950
| Characteristic | Specifications |
|---|---|
| USAGE DESIGN | METAL WORKING |
| WHEEL STYLE | SAUCER |
| HOLE DIAMETER | 22.23 MILLIMETERS NOMINAL |
| WHEEL DIAMETER | 115.0 MILLIMETERS NOMINAL |
| MOUNTING STYLE | ONE DIAMETER |
| COLOR | BLACK |
| SPECIAL FEATURES | SURFACE GRINDING, EDGE GRINDING, WELDING-SEAM MACHINING AND DEBURRING |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FLAP DISK |
