NSN 5355-00-243-5874
Part Details | LOCK DIAL-KNOB
5355-00-243-5874 An item designed to be mounted on a panel, chassis or the like, to grip and lock a dial or knob to a fixed position. For items designed to clamp around the shaft to which the dial or knob is affixed, see SHAFT LOCK, ELECTRICAL COMPONENT.
Alternate Parts: 10167C, 10-167C, DL1947, 76B131, 10167C, 10-167C, 5355-00-243-5874, 00-243-5874, 5355002435874, 002435874
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-243-5874 | 67471 ( DIAL-KNOB, LOCK ) |
REFERENCE DRAWINGS & PICTURES

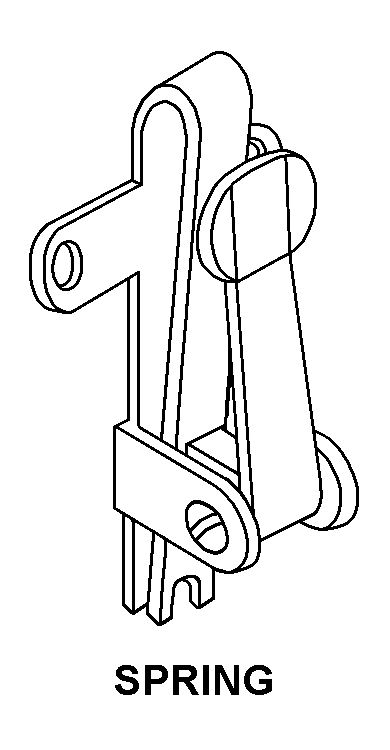

SPRING
Cross Reference | NSN 5355-00-243-5874
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-167C | 05690 | BARKER & WILLIAMSON |
| DL1947 | 71218 | BUD INDUSTRIES, INC. |
| 76B131 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MULTIPLE |
| 10-167C | 4W146 | SMART MACHINES, INC.DBA BARKER & WILLIAMSON |
Technical Data | NSN 5355-00-243-5874
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPRING |
| ATTACHMENT METHOD | CENTER HOLE |
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | NICKEL |
| ITEM ACCOMMODATED MAXIMUM THICKNESS | 0.031 INCHES |
| LOCKING ADJUSTMENT TYPE | SPRING CLIP |
