NSN 5355-00-256-3634
Part Details | LOCK DIAL-KNOB
5355-00-256-3634 An item designed to be mounted on a panel, chassis or the like, to grip and lock a dial or knob to a fixed position. For items designed to clamp around the shaft to which the dial or knob is affixed, see SHAFT LOCK, ELECTRICAL COMPONENT.
Alternate Parts: SA5810, 5355-00-256-3634, 00-256-3634, 5355002563634, 002563634
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-256-3634 | 67471 ( DIAL-KNOB, LOCK ) |
REFERENCE DRAWINGS & PICTURES

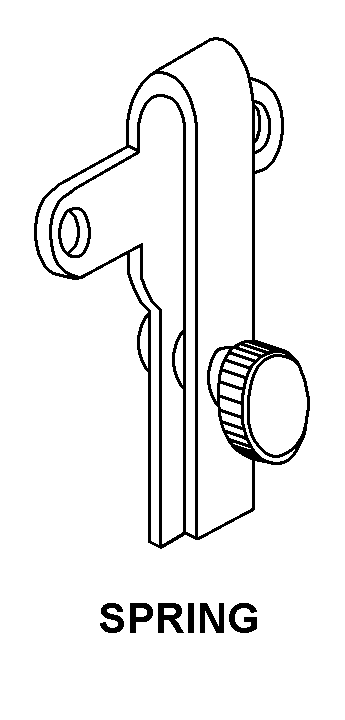

SPRING
Cross Reference | NSN 5355-00-256-3634
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SA5810 | 07886 | DAR ELECTRONICS INCCOMMERCIAL PRODUCTS DIV |
Technical Data | NSN 5355-00-256-3634
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPRING |
| ATTACHMENT METHOD | CENTER HOLE |
| ITEM ACCOMMODATED MAXIMUM THICKNESS | 0.062 INCHES |
| LOCKING ADJUSTMENT TYPE | FRICTION KNOB |
