NSN 5355-00-304-7266
Part Details | DIAL COVER
5355-00-304-7266 Excludes MASK, DIAL
Alternate Parts: 45194, 5355-00-304-7266, 00-304-7266, 5355003047266, 003047266
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-304-7266 | 14951 ( COVER, DIAL ) |

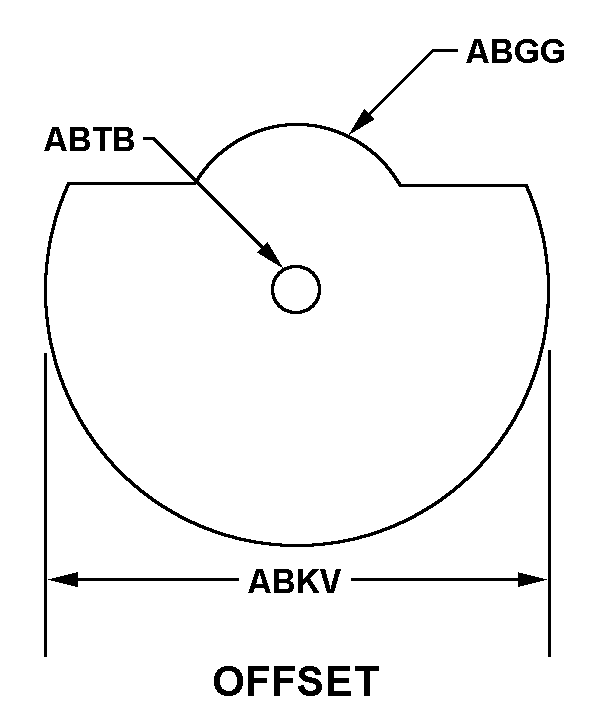

REFERENCE DRAWINGS & PICTURES
OFFSET
Cross Reference | NSN 5355-00-304-7266
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 45194 | 24930 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, RADAR |
Technical Data | NSN 5355-00-304-7266
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OFFSET |
| RADIUS | 2.188 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.110 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.578 INCHES NOMINAL |
| ATTACHMENT METHOD | HOLE |
| SPECIAL FEATURES | ANODIZED OVERALL PER GILFILLAN BROTHERS INC, DRAWING 42151, OPERATION T7 |
| END ITEM IDENTIFICATION | LANDING CONTROL CENTRAL,AN/MPN-14 |
