NSN 5355-00-309-7730
Part Details | SHAFT LOCK
5355-00-309-7730 An item designed to be attached in place of the mounting bushing nut and/or attached to the chassis or panel for a volume control, a variable capacitor or the like to permit locking the shaft in a fixed position.
Alternate Parts: 10060, 43A101362ISSUE0, 43A101362ISSUE0, 8176081, 176081, 5355-00-309-7730, 00-309-7730, 5355003097730, 003097730
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-309-7730 | 67474 ( LOCK, SHAFT ) |
REFERENCE DRAWINGS & PICTURES

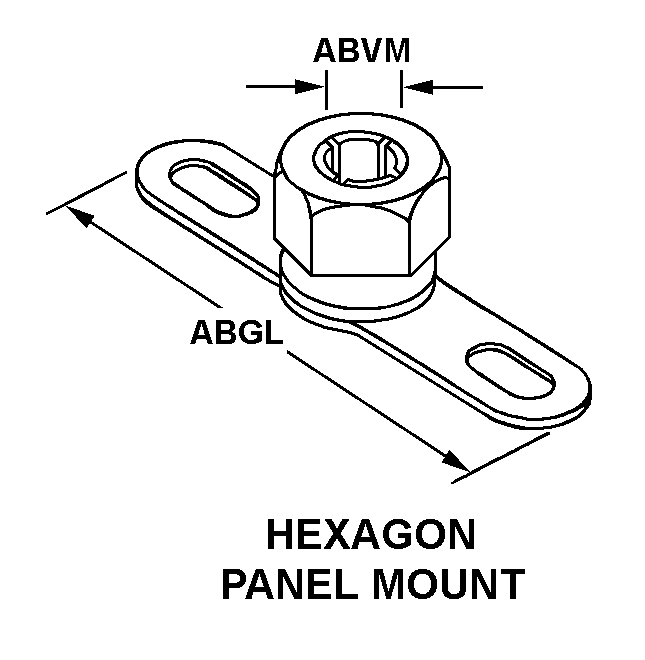

HEXAGON PANEL MOUNT
Cross Reference | NSN 5355-00-309-7730
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10060 | 57285 | BETA LABS INCA-B AND MILLEN MFG DIV |
| 43A101362ISSUE0 | 1VPW8 | GENERAL DYNAMICS MISSION SYSTEMS,INC |
| 43A101362ISSUE0 | 94990 | MOTOROLA INC.DBA INTEGRATED INFORMATION SYSTEMS |
| 8176081 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 176081 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5355-00-309-7730
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HEXAGON PANEL MOUNT |
| ACCOMMODATED SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| WIDTH | 1.750 INCHES NOMINAL |
