NSN 5355-00-337-5879
Part Details | SHAFT LOCK
5355-00-337-5879 An item designed to be attached in place of the mounting bushing nut and/or attached to the chassis or panel for a volume control, a variable capacitor or the like to permit locking the shaft in a fixed position.
Alternate Parts: BA98438, M3318A, 7599083, 5355-00-337-5879, 00-337-5879, 5355003375879, 003375879
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-337-5879 | 67474 ( LOCK, SHAFT ) |
REFERENCE DRAWINGS & PICTURES

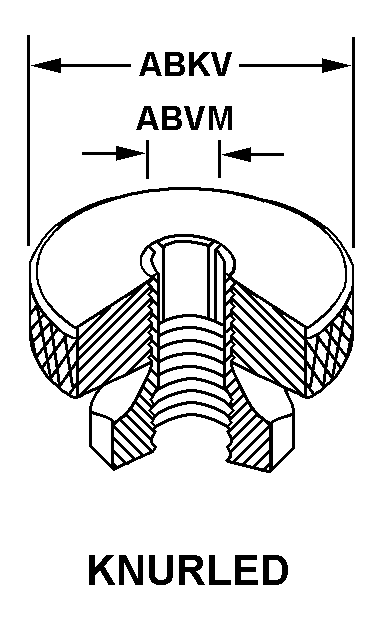

KNURLED
Cross Reference | NSN 5355-00-337-5879
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BA98438 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| M3318A | 01121 | ROCKWELL AUTOMATION, INC. |
| 7599083 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5355-00-337-5879
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KNURLED |
| ACCOMMODATED SHAFT DIAMETER | 0.375 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.688 INCHES NOMINAL |
| ATTACHMENT METHOD | THREADED HOLES |
| SPECIAL FEATURES | HAS RAISED DIAMOND KNURL 0.312 IN. W; MATERIAL DOCUMET AND CLASSIFICATION OVERALL FED SPEC QQ-B-626; SURFACE TREATMENT DOCUMENT AND CLASSIFICATION OVERALL FED SPEC QQ-N-290, TYPE 1 |
