NSN 5355-00-381-8535
Part Details | DIAL WINDOW
5355-00-381-8535 A piece of transparent material specifically designed to be placed directly in front of a dial or scale to protect it from foreign matter. It is cut to size and may include a frame. It may have an index line or other marking. See also WINDOW, OBSERVATION; and DIAL, SCALE.
Alternate Parts: 480854PC2, 5355-00-381-8535, 00-381-8535, 5355003818535, 003818535
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-381-8535 | 08194 ( WINDOW, DIAL ) |
REFERENCE DRAWINGS & PICTURES

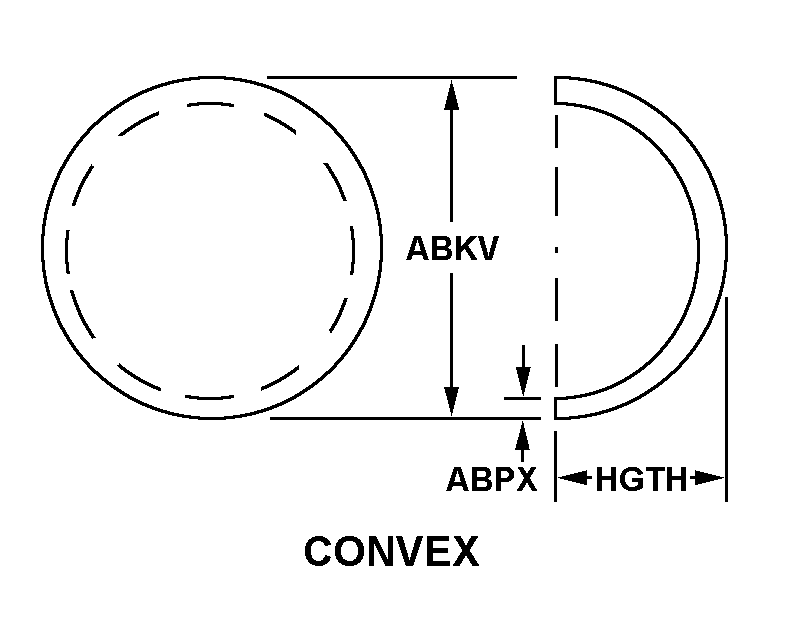

CONVEX
Cross Reference | NSN 5355-00-381-8535
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 480854PC2 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5355-00-381-8535
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| STYLE DESIGNATOR | CONVEX |
| OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.190 INCHES NOMINAL |
| HEIGHT | 0.940 INCHES NOMINAL |
| ATTACHMENT METHOD | CENTER HOLE |
