NSN 5355-00-393-5374
Part Details | KNOB
5355-00-393-5374 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).
Alternate Parts: MAFB4038APC5, CAFB2101H, AFB2101H, CAFB2101H, 5355-00-393-5374, 00-393-5374, 5355003935374, 003935374
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-393-5374 | 03263 ( KNOB ) |
REFERENCE DRAWINGS & PICTURES

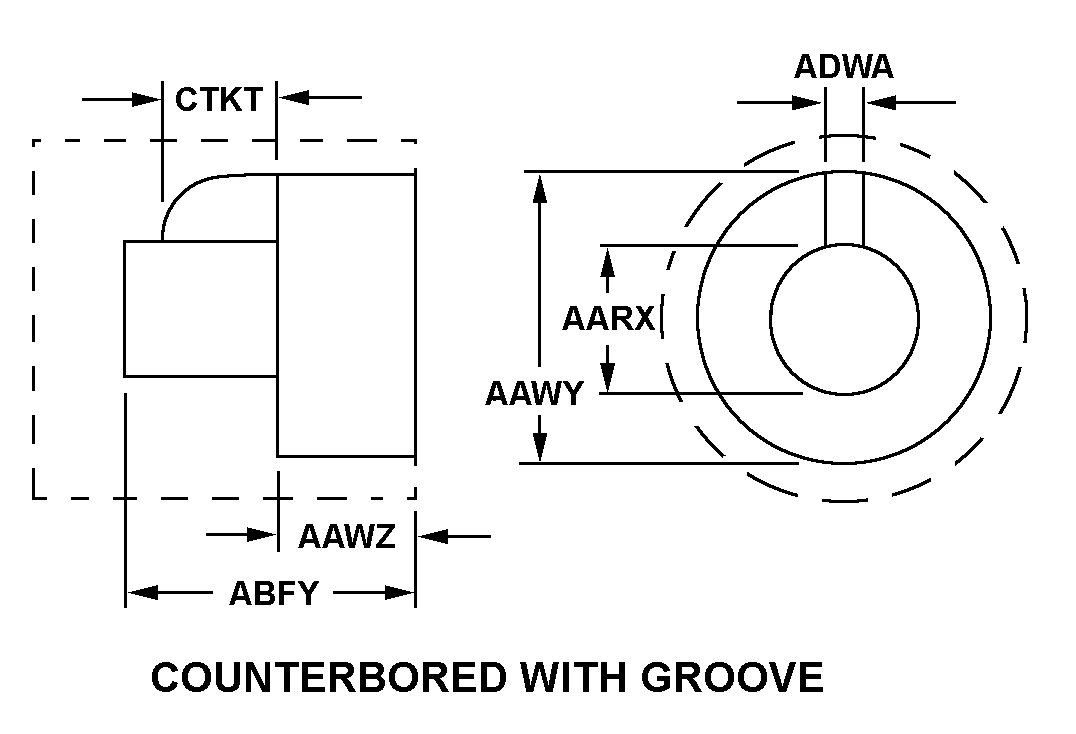

COUNTERBORED WITH GROOVE
BAR
Cross Reference | NSN 5355-00-393-5374
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MAFB4038APC5 | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| CAFB2101H | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| AFB2101H | 82796 | COLTEC INDUSTRIES INC.DBA FAIRBANKS MORSE ENGINE |
| CAFB2101H | 7PZX0 | FAIRBANKS MORSE, LLC |
Technical Data | NSN 5355-00-393-5374
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 0 BAR |
| OUTSIDE DIAMETER | 3.000 INCHES NOMINAL |
| ATTACHMENT METHOD | STUD |
| GRIPPING SURFACE CONDITION | SMOOTH |
| SHAFT ACCOMMODATION STYLE | COUNTERBORED WITH GROOVE |
| INSIDE DIAMETER | 0.875 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 0.469 INCHES NOMINAL |
| COUNTERBORE DEPTH | 1.125 INCHES NOMINAL |
| OVERALL DEPTH | 2.375 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
