NSN 5355-00-845-9646
Part Details | DIAL MASK
5355-00-845-9646 An item specifically designed to be used with a multiscale dial or sector of a measuring device to limit, open or close the observation of the scale (s), or dial (s) desired. It is usually flat and contains one or more observation slots. It may be hinged or otherwise moved by rotary or straight-line motion to expose the scale or scales required for observation.
Alternate Parts: 5461720003, 546-1720-003, 5355-00-845-9646, 00-845-9646, 5355008459646, 008459646
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-845-9646 | 09867 ( MASK, DIAL ) |
REFERENCE DRAWINGS & PICTURES

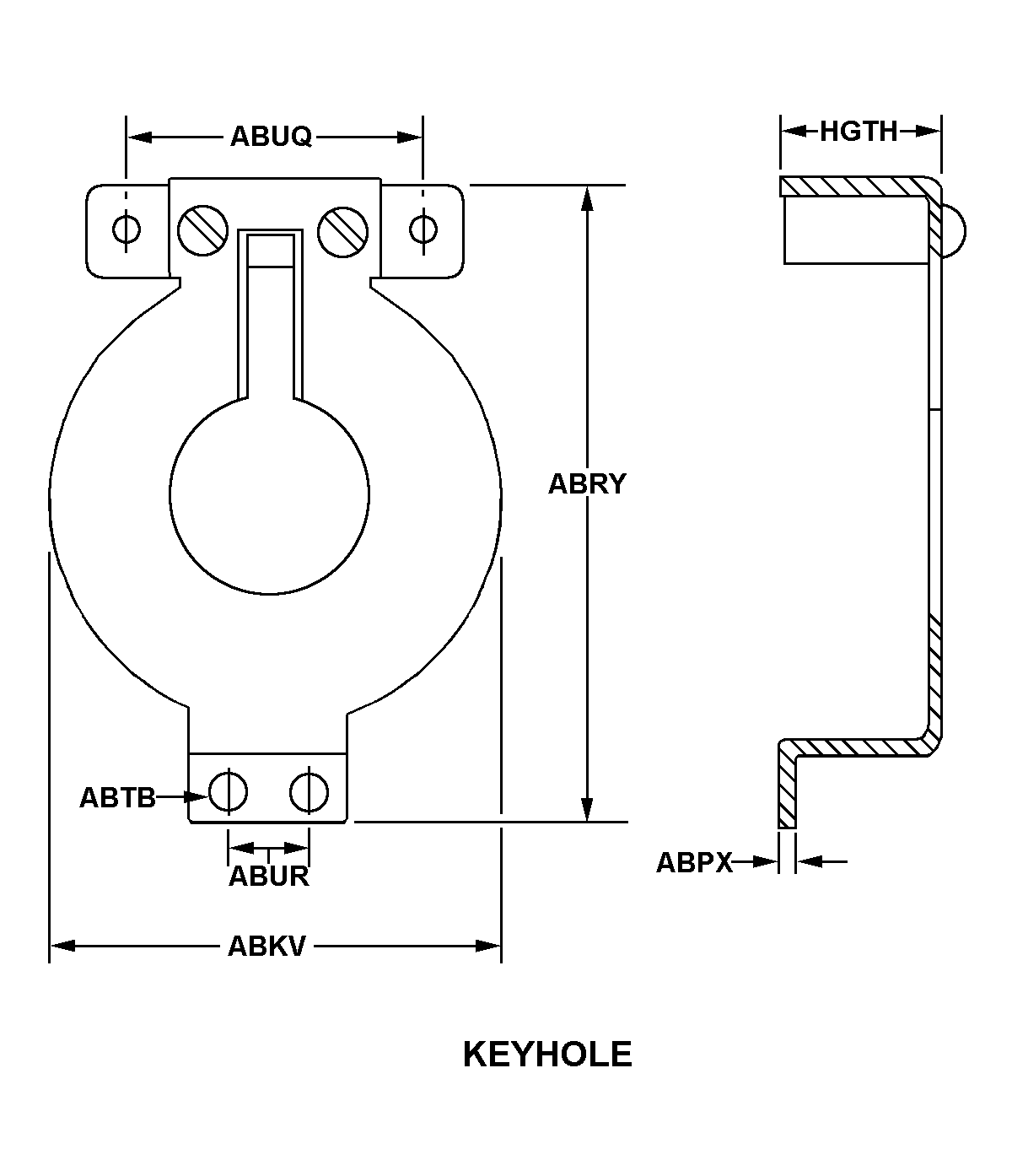

KEYHOLE
Cross Reference | NSN 5355-00-845-9646
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 546-1720-003 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5355-00-845-9646
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEYHOLE |
| LENGTH | 4.552 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.005 INCHES NOMINAL |
| DIAL OBSERVATION SLOT QUANTITY | 2 |
| SPECIAL FEATURES | ATTACHMENT METHOD, CEMENTED (GLUED OR ADHESIVE) |
| FSC APPLICATION DATA | INDICATOR,HORIZONTAL SITUATION |
