NSN 5355-00-905-3765
Part Details | LOCK DIAL-KNOB
5355-00-905-3765 An item designed to be mounted on a panel, chassis or the like, to grip and lock a dial or knob to a fixed position. For items designed to clamp around the shaft to which the dial or knob is affixed, see SHAFT LOCK, ELECTRICAL COMPONENT.
Alternate Parts: M150, M1-50, 7211891, 721189-1, 5189114, 5355-00-905-3765, 00-905-3765, 5355009053765, 009053765
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1960 | 00-905-3765 | 67471 ( DIAL-KNOB, LOCK ) |
REFERENCE DRAWINGS & PICTURES

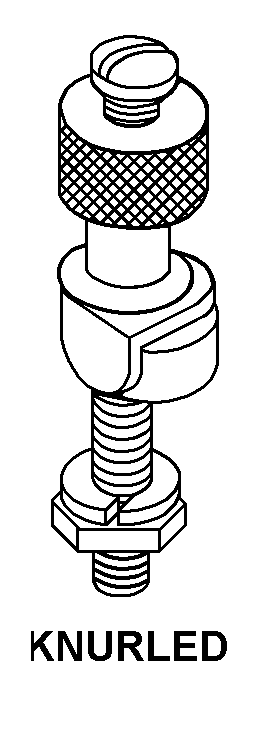

KNURLED
Cross Reference | NSN 5355-00-905-3765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M1-50 | 00141 | ROLLER BEARING COMPANY OF AMERICA,INC. |
| 721189-1 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
| 5189114 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5355-00-905-3765
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KNURLED |
| ATTACHMENT METHOD | THREADED HOLES |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| ITEM ACCOMMODATED MAXIMUM THICKNESS | 0.062 INCHES |
| LOCKING ADJUSTMENT TYPE | KNURLED NUT |
