NSN 5360-00-075-0153
Part Details | EXTENSION HELICAL SPRING
5360-00-075-0153 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.
Alternate Parts: 74763183, 5360-00-075-0153, 00-075-0153, 5360000750153, 000750153
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-075-0153 | 04227 ( SPRING, HELICAL, EXTENSION ) |
REFERENCE DRAWINGS & PICTURES

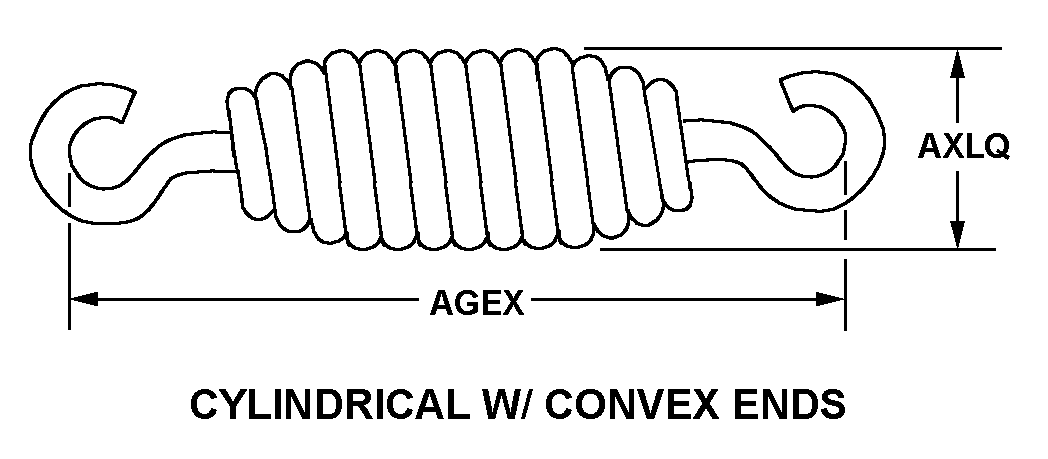

CYLINDRICAL W/ CONVEX ENDS
Cross Reference | NSN 5360-00-075-0153
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74763183 | 0AHU0 | KALMAR AC INC |
Technical Data | NSN 5360-00-075-0153
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL W/ CONVEX ENDS |
| SPRING FREE LENGTH | 4.375 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.875 INCHES NOMINAL |
| COIL HELIX DIRECTION | LEFT-HAND |
| COIL QUANTITY | 26 |
| DESIGN TYPE | OPEN |
