NSN 5360-00-134-3368
Part Details | COMPRESSION HELICAL SPRING
5360-00-134-3368 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.
Alternate Parts: 114V80027, 114V8002-7, 5360-00-134-3368, 00-134-3368, 5360001343368, 001343368
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 14, 1969 | 00-134-3368 | 04226 ( SPRING, HELICAL, COMPRESSION ) |
REFERENCE DRAWINGS & PICTURES

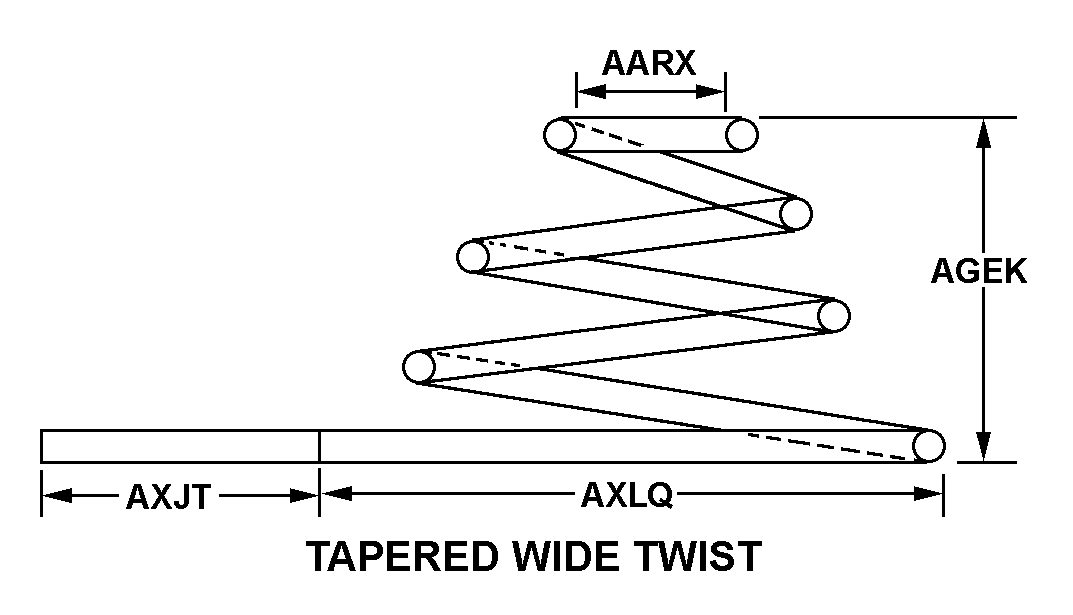

TAPERED WIDE TWIST
Cross Reference | NSN 5360-00-134-3368
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114V8002-7 | 77272 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 5360-00-134-3368
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TAPERED WIDE TWIST |
| INSIDE DIAMETER | 0.125 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.269 INCHES NOMINAL |
| SPRING SOLID LENGTH | 0.231 INCHES NOMINAL |
| SPRING SOLID OUTSIDE DIAMETER | 0.188 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.150 INCHES NOMINAL |
| COIL HELIX DIRECTION | L$G |
| COIL QUANTITY | 4 |
| SPRING DEFLECTION RATE | 1.000 POUNDS PER INCH NOMINAL |
