NSN 5360-00-143-7325
Part Details | TORSION SPIRAL SPRING
5360-00-143-7325 A spring consisting of a length of material wound on itself in the form of a spiral, finished at the ends and designed to exert pressure in a rotating direction around the spring axis. The material may be of various cross-sectional shapes such as round or rectangular. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature).
Alternate Parts: 79002001913, 5360-00-143-7325, 00-143-7325, 5360001437325, 001437325
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 17, 1973 | 00-143-7325 | 04229 ( SPRING, SPIRAL, TORSION ) |
REFERENCE DRAWINGS & PICTURES

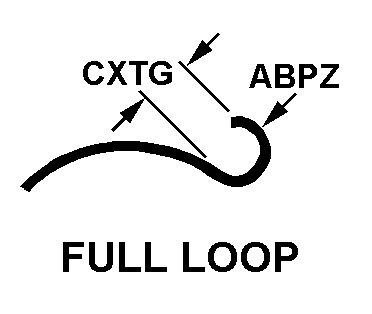

FULL LOOP
Cross Reference | NSN 5360-00-143-7325
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 79002001913 | 89944 | KOLLSMAN, INC. |
Technical Data | NSN 5360-00-143-7325
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FULL LOOP |
| END RADIUS | 0.035 INCHES MINIMUM AND 0.045 INCHES MAXIMUM |
| SPRING OVERALL DIAMETER | 0.600 INCHES NOMINAL |
| HUB SIZE | 0.030 INCHES NOMINAL |
| HOLE DIAMETER | 0.015 INCHES NOMINAL |
| HOOK OPENING WIDTH | 0.050 INCHES NOMINAL |
| STOCK WIDTH | 0.093 INCHES NOMINAL |
