NSN 5360-00-200-3690
Part Details | TORSION SPIRAL SPRING
5360-00-200-3690 A spring consisting of a length of material wound on itself in the form of a spiral, finished at the ends and designed to exert pressure in a rotating direction around the spring axis. The material may be of various cross-sectional shapes such as round or rectangular. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature).
Alternate Parts: 27326, 5360-00-200-3690, 00-200-3690, 5360002003690, 002003690
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-200-3690 | 04229 ( SPRING, SPIRAL, TORSION ) |

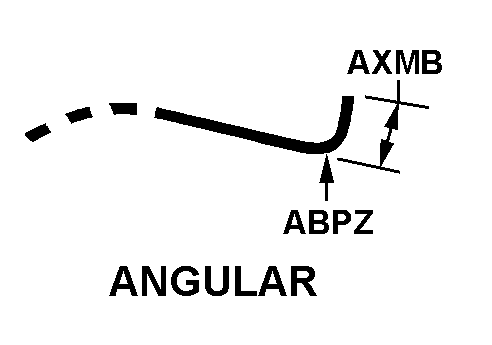

REFERENCE DRAWINGS & PICTURES
ANGULAR
Cross Reference | NSN 5360-00-200-3690
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27326 | 83298 | ALLIED SIGNAL INCAEROSPACE EQUIPMENT SYSTEMS |
Technical Data | NSN 5360-00-200-3690
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGULAR |
| END RADIUS | 0.016 INCHES NOMINAL |
| SPRING OVERALL DIAMETER | 0.688 INCHES MAXIMUM |
| HUB SIZE | 0.188 INCHES NOMINAL |
| END LENGTH | 0.188 INCHES NOMINAL |
| STOCK WIDTH | 0.110 INCHES NOMINAL |
| STOCK THICKNESS | 0.009 INCHES NOMINAL |
| COIL QUANTITY | 6 |
