NSN 5365-00-012-4494
Part Details | NONMETALLIC BUSHING
5365-00-012-4494 An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC.
Alternate Parts: 103524, 5365-00-012-4494, 00-012-4494, 5365000124494, 000124494
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 10, 1968 | 00-012-4494 | 39929 ( BUSHING, NONMETALLIC ) |
REFERENCE DRAWINGS & PICTURES

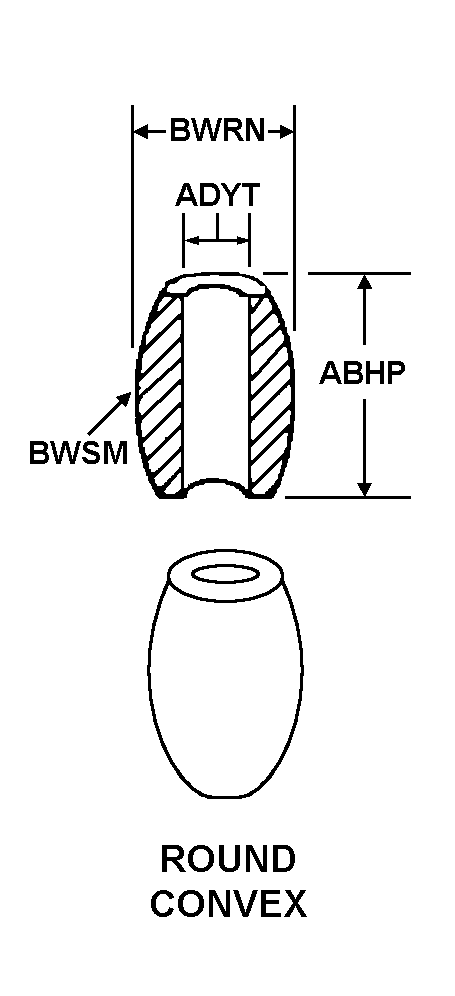

ROUND CONVEX
Cross Reference | NSN 5365-00-012-4494
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103524 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
Technical Data | NSN 5365-00-012-4494
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| MATERIAL DOCUMENT AND CLASSIFICATION | RTV-601, DOW CORNING CORP MFR REF SINGLE MATERIAL RESPONSE |
| DESIGN TYPE | SINGLE CENTRALLY LOCATED HOLE |
| STYLE DESIGNATOR | ROUND CONVEX |
| OVERALL LENGTH | 0.370 INCHES NOMINAL |
| BODY DIAMETER | 0.280 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.135 INCHES NOMINAL |
| BODY CROSS-SECTIONAL LENGTH | 0.280 INCHES NOMINAL |
| CONVEX BODY RADIUS | 0.370 INCHES NOMINAL |
| NONMETALLIC HARDNESS RATING | 40.0 NOMINAL DUROMETER |
