NSN 5365-00-031-2247
Part Details | MACHINE THREAD PLUG
5365-00-031-2247 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Alternate Parts: 6HP50NS, 4730PL0675436, 332G0428, 332/G0428, 3244460, 2HG667, 3244460, 6HP50NS, 6 HP5ONS, 6 HP5ON-S, 06HP50NS, 06-HP50N-S, 6HP50NS, 5365-00-031-2247, 00-031-2247, 5365000312247, 000312247
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 21, 1972 | 00-031-2247 | 03801 ( PLUG, MACHINE THREAD ) |
REFERENCE DRAWINGS & PICTURES

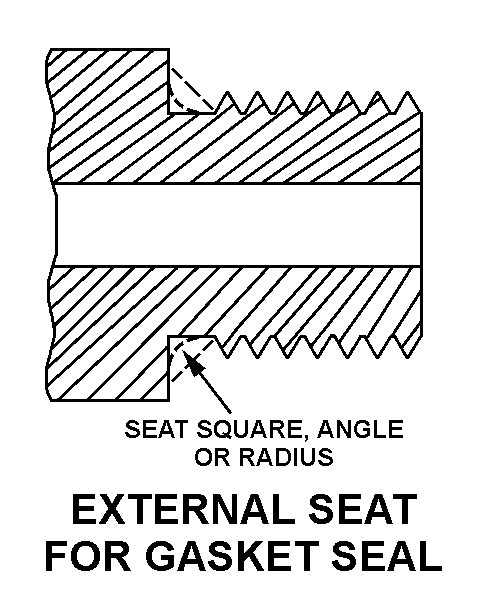

EXTERNAL SEAT FOR GASKET SEAL
PLUG, MACHINE
Cross Reference | NSN 5365-00-031-2247
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6HP50NS | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMSLP |
| 4730PL0675436 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 332/G0428 | K7599 | JC BAMFORD EXCAVATORS LTD |
| 3244460 | 45152 | OSHKOSH CORPORATION |
| 2HG667 | 45152 | OSHKOSH CORPORATION |
| 3244460 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 6HP50NS | 98441 | PARKER-HANNIFIN CORPORATIONDBA STRATOFLEX PRODUCTS DIVISION |
| 6 HP5ON-S | 30780 | PARKER-HANNIFIN CORPORATIONDBA TUBE FITTINGS DIVISION |
| 06-HP50N-S | 30780 | PARKER-HANNIFIN CORPORATIONDBA TUBE FITTINGS DIVISION |
| 6HP50NS | 45681 | PARKER-HANNIFIN CORPORATIONDIV CORPORATE HEADQUARTERS |
Technical Data | NSN 5365-00-031-2247
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 5 PLUG, MACHINE |
| HEAD DIAMETER | 0.690 INCHES NOMINAL |
| HEAD HEIGHT | 0.100 INCHES NOMINAL |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| CONNECTION STYLE | EXTERNAL SEAT FOR GASKET SEAL |
| MAXIMUM OPERATING PRESSURE | 6000.0 POUNDS PER SQUARE INCH |
| HEAD TYPE | SOLID |
| BODY TYPE | CORED |
| FEATURES PROVIDED | O RING |
| SPECIAL FEATURES | NOMINAL WIDTH ACROSS THE FLATS OF HEX SOCKET IS 0.250 INCHES |
| PROPRIETARY CHARACTERISTICS | NPAC |
| END ITEM IDENTIFICATION | 2320-01-304-2277 PLS (PALLETIZED LOADING SYSTEM); MRAP - COUGAR CAT1 A1; MRAP - COUGAR ISS 1.5; MRAP - M-ATV UI; MRAP - COUGAR ISS 1.0 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | HOLLOW HEX PLUG |
