NSN 5905-00-010-5383
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-010-5383 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 49MCM30738, CM30738, 311038000, 311-0380-00, 5905-00-010-5383, 00-010-5383, 5905000105383, 000105383
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 15, 1967 | 00-010-5383 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

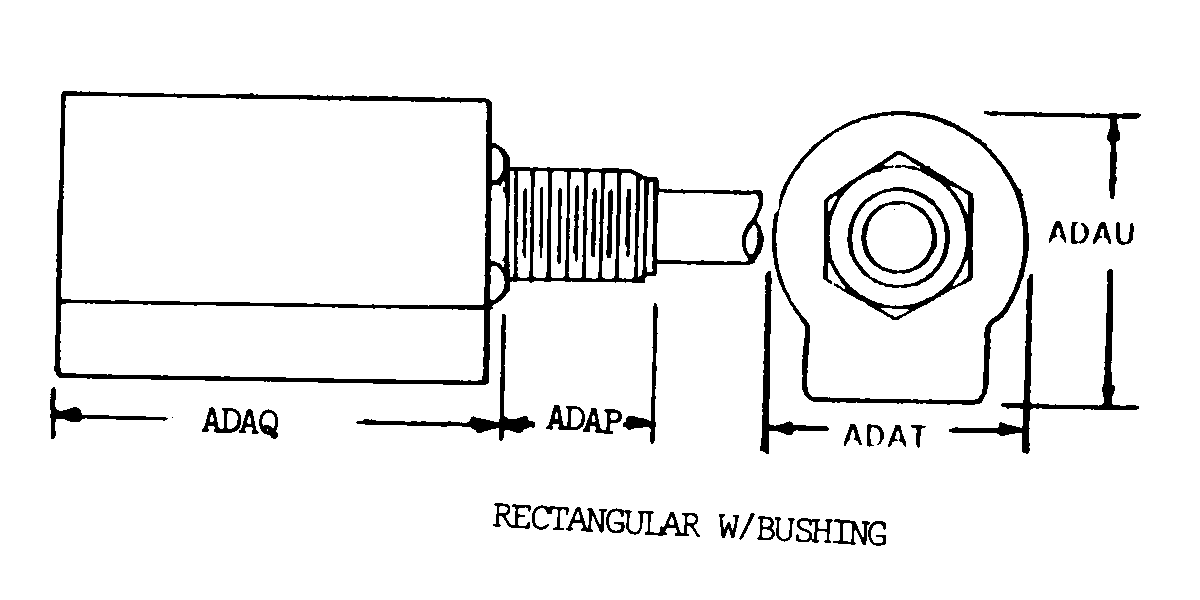

RECTANGULAR W/BUSHING
ROUND, SLOTTED
Cross Reference | NSN 5905-00-010-5383
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 49MCM30738 | 12697 | CLAROSTAT SENSORS AND CONTROLS |
| CM30738 | 12697 | CLAROSTAT SENSORS AND CONTROLS |
| 311-0380-00 | 80009 | TEKTRONIX, INC.DBA TEKTRONIX |
Technical Data | NSN 5905-00-010-5383
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 500.0 OHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO +10.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.5 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 120.0 SINGLE SECTION |
| BODY STYLE | RECTANGULAR W/BUSHING |
| BODY LENGTH | 1.062 INCHES NOMINAL |
| BODY WIDTH | 0.750 INCHES NOMINAL |
| BODY HEIGHT | 0.484 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.500 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, SLOTTED |
| SHAFT DIAMETER | 0.125 INCHES NOMINAL |
| SHAFT LENGTH | 0.562 INCHES NOMINAL |
| NONTURN DEVICE LOCATION | AT 9 OCLOCK |
| NONTURN DEVICE RADIUS | 0.234 INCHES NOMINAL |
| MOUNTING METHOD | LOCKING BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.250 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | NONMETALLIC SHAFT AND PANEL SEAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
