NSN 5905-00-010-5387
Part Details | THERMAL RESISTOR
5905-00-010-5387 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Alternate Parts: 4110045, 4110-045, P4110045, P4110-045, 5905-00-010-5387, 00-010-5387, 5905000105387, 000105387
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 15, 1967 | 00-010-5387 | 00309 ( RESISTOR, THERMAL ) |
REFERENCE DRAWINGS & PICTURES

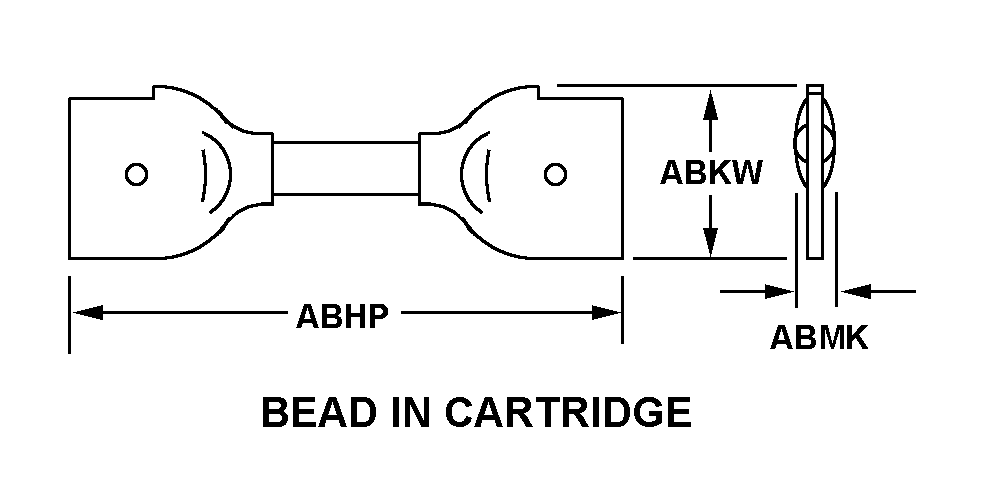

BEAD IN CARTRIDGE
Cross Reference | NSN 5905-00-010-5387
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4110-045 | 70998 | BIRD ELECTRONIC CORPORATIONDIV BIRD ELECTRONIC CORP |
| P4110-045 | 70998 | BIRD ELECTRONIC CORPORATIONDIV BIRD ELECTRONIC CORP |
Technical Data | NSN 5905-00-010-5387
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 9.200 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | M10.0/P10.0 |
| MAXIMUM POWER DISSIPATION RATING | 2.00 WATTS |
| AMBIENT TEMP AT FULL RATED POWER | 125.0 DEG CELSIUS |
| MAXIMUM OPERATING TEMP | 200.0 DEG CELSIUS |
| THERMAL TIME CONSTANT IN SECONDS | 70.0 |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 6.5 |
| STYLE DESIGNATOR | BEAD IN CARTRIDGE |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.375 INCHES NOMINAL |
| OVERALL WIDTH | 0.125 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| REFERENCE TEMP IN DEG CELSIUS | 25.0 |
| MAXIMUM CURRENT RATING | 25.00 AMPERES |
