NSN 5905-00-018-8965
Part Details | THERMAL RESISTOR
5905-00-018-8965 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Alternate Parts: 25A4, 25A4, 5905-00-018-8965, 00-018-8965, 5905000188965, 000188965
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 22, 1967 | 00-018-8965 | 00309 ( RESISTOR, THERMAL ) |
REFERENCE DRAWINGS & PICTURES

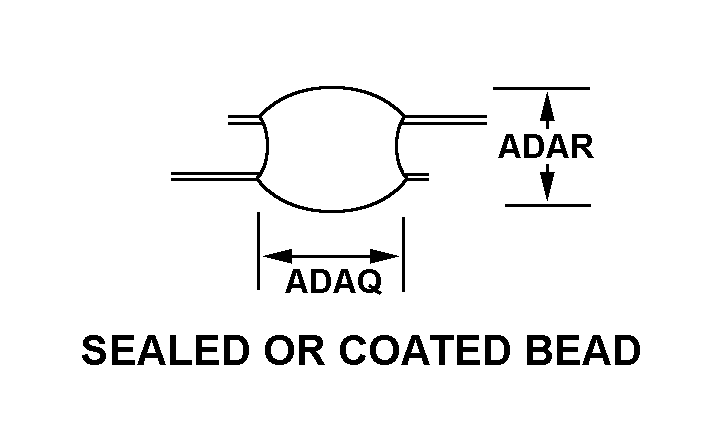

SEALED OR COATED BEAD
Cross Reference | NSN 5905-00-018-8965
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25A4 | 83186 | MEAS US LLCDIV TEMPERATURE PRODUCTS GROUP |
| 25A4 | 1L9U5 | MEASUREMENT SPECIALTIES, INC. |
Technical Data | NSN 5905-00-018-8965
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 500.000 OHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | M20.0/P20.0 |
| AMBIENT TEMP AT FULL RATED POWER | 25.0 DEG CELSIUS |
| MAXIMUM OPERATING TEMP | 300.0 DEG CELSIUS |
| THERMAL TIME CONSTANT IN SECONDS | 2.0 |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 0.7 |
| ZERO POWER TEMP COEFFICIENT OF RESISTANCE IN PERCENT PER DEG CELSIUS | M3.40 |
| STYLE DESIGNATOR | SEALED OR COATED BEAD |
| BODY LENGTH | 0.043 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.043 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 0.312 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.004 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| REFERENCE TEMP IN DEG CELSIUS | 25.0 |
