NSN 5905-00-019-2387
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-019-2387 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 3347521, 334752-1, C58132, C5813-2, C58132, C5813-2, 5905-00-019-2387, 00-019-2387, 5905000192387, 000192387
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-019-2387 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES
CYLINDRICAL TAB/FLANGE MOUNTED

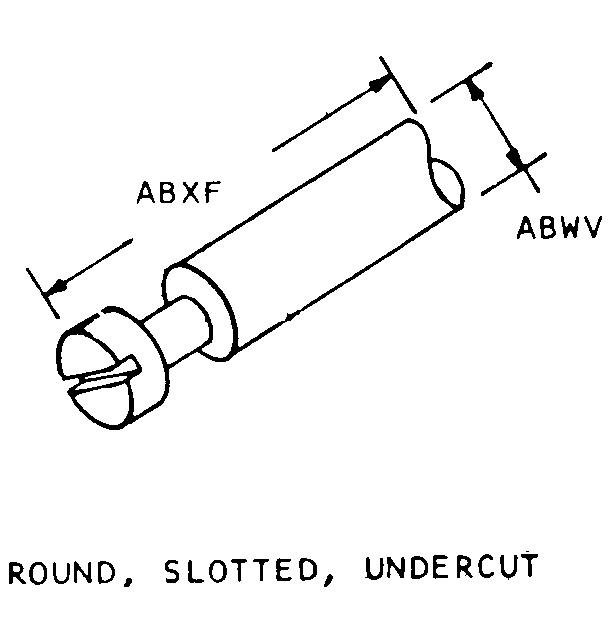

ROUND, SLOTTED, UNDERCUT
Cross Reference | NSN 5905-00-019-2387
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 334752-1 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| C5813-2 | 75042 | TRW INCTRW ELECTRONIC COMPONENTS |
| C5813-2 | 84048 | VERNITRON CORPVRN INTERNATIONAL DIV |
Technical Data | NSN 5905-00-019-2387
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 2.5 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.125 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 55.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 100.0 SINGLE SECTION |
| BODY STYLE | CYLINDRICAL TAB/FLANGE MOUNTED |
| BODY DIAMETER | 0.375 INCHES NOMINAL |
| BODY LENGTH | 0.480 INCHES NOMINAL |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 0.562 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, SLOTTED, UNDERCUT |
| SHAFT DIAMETER | 0.125 INCHES NOMINAL |
| SHAFT LENGTH | 0.192 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 360.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CONTINUOUS MOTION |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 360.0 NOMINAL |
| MOUNTING METHOD | FLANGE |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LOOP |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
