NSN 5905-00-027-7214
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-027-7214 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 536909, C1009176, C10-09-176, 536909, 536909, 5005545, 500-5545, 5005545, 500-5545, 5905-00-027-7214, 00-027-7214, 5905000277214, 000277214
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-027-7214 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

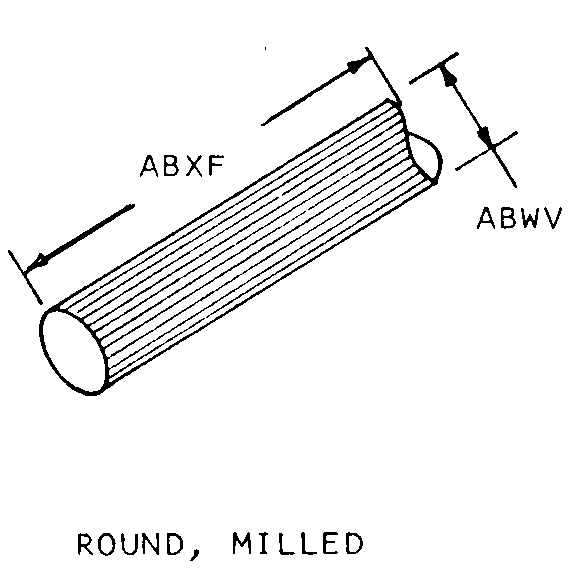

ROUND, MILLED
Cross Reference | NSN 5905-00-027-7214
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 536909 | 11534 | BEI SENSORS & SYSTEMS COMPANY, INC.DBA BEI DUNCAN |
| C10-09-176 | 99957 | BOWMAR/TIC INCSUB OF BOWMAR INSTRUMENT CORP |
| 536909 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 536909 | 64547 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| 500-5545 | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| 500-5545 | 02111 | VISHAY THIN FILM, LLCDBA VISHAY SPECTORAL ELECTRONICS |
Technical Data | NSN 5905-00-027-7214
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 29.5 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, MILLED |
| SHAFT DIAMETER | 0.152 INCHES NOMINAL |
| SHAFT LENGTH | 0.303 INCHES NOMINAL |
| MOUNTING METHOD | CLAMP RING |
| FEATURES PROVIDED | GROUNDED CONTACT ARM |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
