NSN 5905-00-038-6930
Part Details | THERMAL RESISTOR
5905-00-038-6930 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Alternate Parts: K1817, 5352701, 535270-1, K1817, 5905-00-038-6930, 00-038-6930, 5905000386930, 000386930
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 10, 1972 | 00-038-6930 | 00309 ( RESISTOR, THERMAL ) |
REFERENCE DRAWINGS & PICTURES

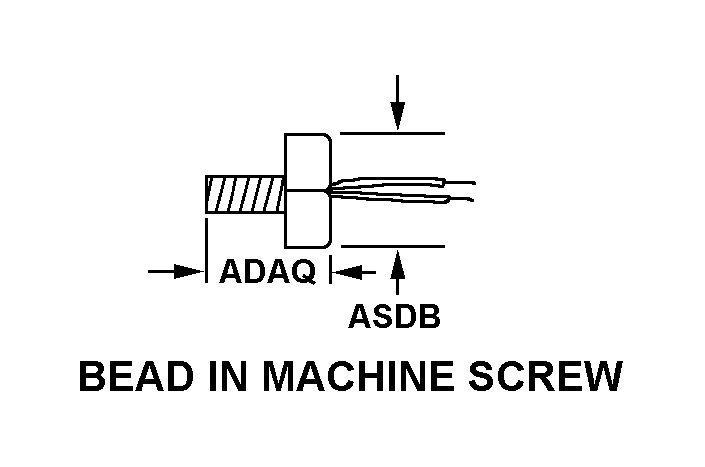

BEAD IN MACHINE SCREW
Cross Reference | NSN 5905-00-038-6930
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K1817 | 02606 | BAXTER HEALTHCARE CORPORATIONDBA BAXTER BIOTECH DIV TRANSFUSION |
| 535270-1 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| K1817 | 08125 | U S DEPT OF TRANSPORTATION FEDERALAVIATION ADMINISTRATION |
Technical Data | NSN 5905-00-038-6930
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 18.000 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | M5.5/P5.5 |
| THERMAL TIME CONSTANT IN SECONDS | 2.0 |
| STYLE DESIGNATOR | BEAD IN MACHINE SCREW |
| BODY LENGTH | 0.322 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.138 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| INCLOSURE TYPE | ENCASED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 24.000 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.010 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| END ITEM IDENTIFICATION | ASR7 |
