NSN 5905-00-041-1637
Part Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-041-1637 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 916164, 91616-4, 5905-00-041-1637, 00-041-1637, 5905000411637, 000411637
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 08, 1972 | 00-041-1637 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

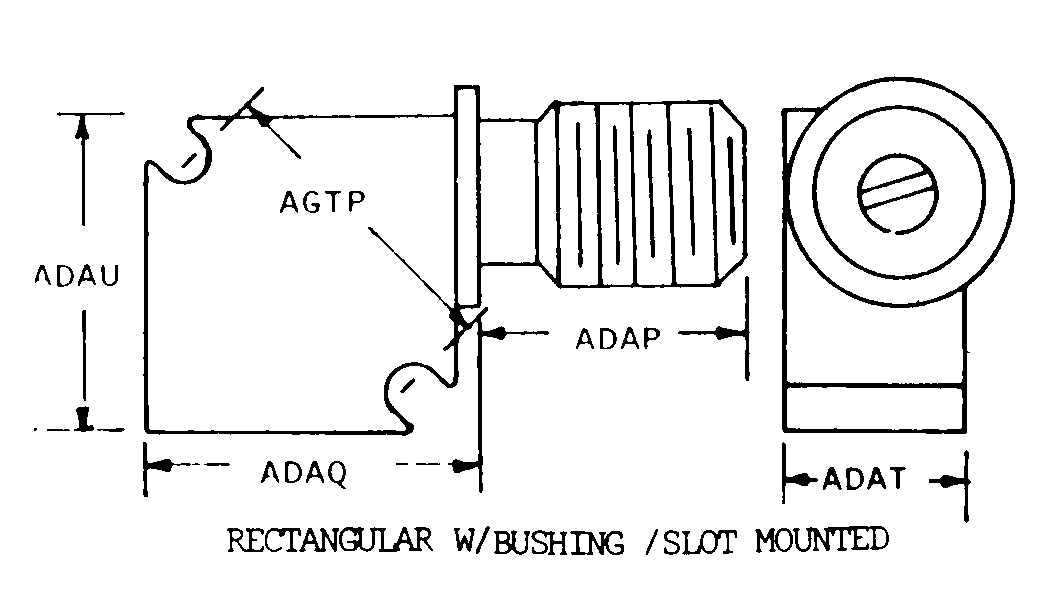

RECTANGULAR W/BUSHING/SLOT MOUNTED
ROUND, SLOTTED
Cross Reference | NSN 5905-00-041-1637
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 91616-4 | 53397 | NUMAX ELECTRONICS INC |
Technical Data | NSN 5905-00-041-1637
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 1.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO +10.0 SINGLE SECTION |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -250.0 TO +250.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.75 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 150.0 SINGLE SECTION |
| BODY STYLE | RECTANGULAR W/BUSHING/SLOT MOUNTED |
| BODY LENGTH | 0.540 INCHES NOMINAL |
| BODY WIDTH | 0.290 INCHES NOMINAL |
| BODY HEIGHT | 0.582 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.240 INCHES NOMINAL |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 0.523 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, SLOTTED |
| SHAFT DIAMETER | 0.093 INCHES NOMINAL |
| SHAFT LENGTH | 0.271 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 8640.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CLUTCH |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 8640.0 NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.190 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | HUMIDITY PROOF |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| OVERALL LENGTH | 0.811 INCHES NOMINAL |
| OVERALL HEIGHT | 0.582 INCHES NOMINAL |
| OVERALL WIDTH | 0.290 INCHES NOMINAL |
| CUBIC MEASURE | 0.091 CUBIC INCHES |
| FRAGILITY FACTOR | MODERATELY RUGGED |
