NSN 5905-00-051-1665
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-051-1665 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 3600S1103, 3600S1-103, 3600S1103, 3600S1-103, Q531701312, 5905-00-051-1665, 00-051-1665, 5905000511665, 000511665
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-051-1665 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

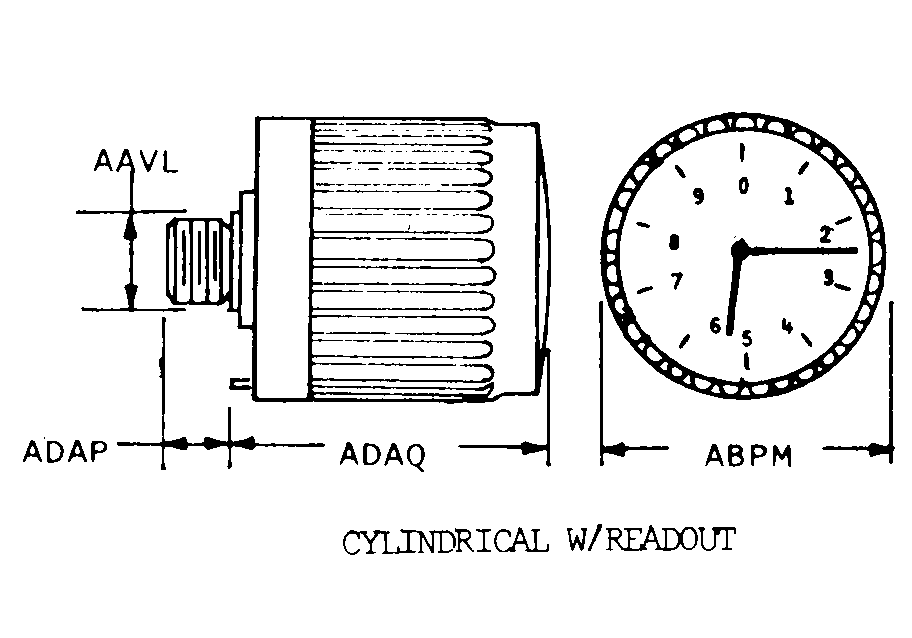

CYLINDRICAL W/READOUT
Cross Reference | NSN 5905-00-051-1665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3600S1-103 | 80294 | BOURNS INSTRUMENTS INC |
| 3600S1-103 | 08294 | BOYERTOWN TROLLEY CORP |
| Q531701312 | S3092 | RHEINMETALL AIR DEFENCE AG |
Technical Data | NSN 5905-00-051-1665
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 10.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| TEMP COEFFICIENT OF RESISTANCE WIRE PER SECTION IN PPM PER DEG CELSIUS | -20.0 TO +20.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.5 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 25.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 85.0 SINGLE SECTION |
| BODY STYLE | CYLINDRICAL W/READOUT |
| PILOT DIAMETER | 0.40400 INCHES NOMINAL |
| BODY DIAMETER | 0.750 INCHES NOMINAL |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.344 INCHES NOMINAL |
| ACTUATOR TYPE | INTEGRAL KNOB WITH COUNTER |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 3600.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 3600.0 NOMINAL |
| NONTURN DEVICE LOCATION | AT 12 OCLOCK |
| NONTURN DEVICE RADIUS | 0.280 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LOOP |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| OVERALL LENGTH | 1.516 INCHES NOMINAL |
| OVERALL DIAMETER | 0.750 INCHES NOMINAL |
| PRECIOUS MATERIAL AND LOCATION | TERMINALS GOLD |
