NSN 5905-00-052-5254
Part Details | PRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-052-5254 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION.
Alternate Parts: 8908741, 890874-1, 7496148, 749-6148, 1437S1261, 1437S126-1, 8908741, 890874-1, 8908741, 890874-1, 8908741, 890874-1, 5905-00-052-5254, 00-052-5254, 5905000525254, 000525254
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 23, 1967 | 00-052-5254 | 37408 ( RESISTOR, VARIABLE, WIRE WOUND, PRECISION ) |
REFERENCE DRAWINGS & PICTURES
CYLINDRICAL SERVO MOUNTED

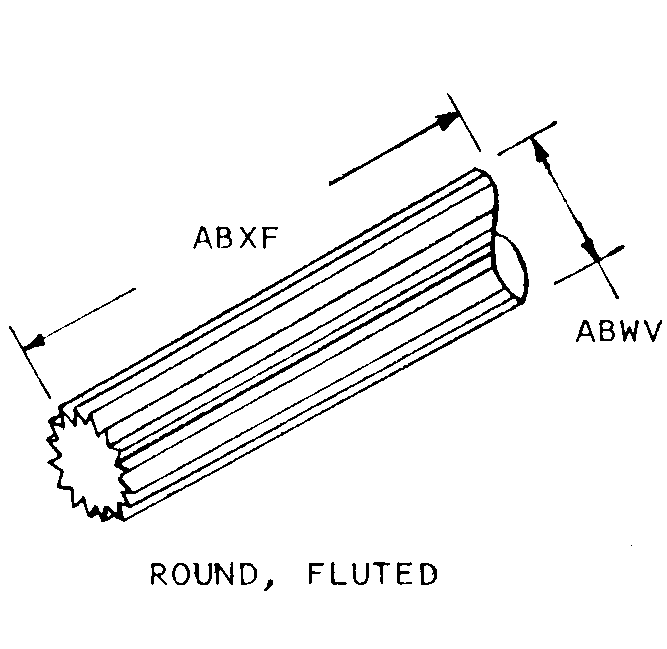

ROUND, FLUTED
Cross Reference | NSN 5905-00-052-5254
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 890874-1 | 73138 | BI TECHNOLOGIES CORPORATIONDIV BI TECHNOLOGIES CORP. |
| 749-6148 | 12205 | BUNKER RAMO CORP AMPHENOL CONTROLSDIV |
| 1437S126-1 | 93322 | GE AVIATION SYSTEMS LLCDBA GE AVIATION |
| 890874-1 | 93322 | GE AVIATION SYSTEMS LLCDBA GE AVIATION |
| 890874-1 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 890874-1 | 04454 | SENSOR SYSTEMS, L.L.C. |
Technical Data | NSN 5905-00-052-5254
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 10.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| FUNCTION CONFORMITY PER SECTION | SINGLE SECTION INDEPENDENT LINEARITY |
| FUNCTION CHARACTERISTIC PER SECTION | SINGLE SECTION LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.50 TO +0.50 SINGLE SECTION |
| SHAFT RUNOUT | 0.001 INCHES |
| LATERAL RUNOUT | 0.002 INCHES |
| PILOT DIAMETER RUNOUT | 0.001 INCHES |
| SHAFT RADIAL PLAY | 0.001 INCHES |
| SHAFT BEARING TYPE | BALL |
| SHAFT END PLAY | 0.002 INCHES |
| MAXIMUM STARTING TORQUE | 0.50 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 0.40 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -20.0 TO +20.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 40.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 85.0 SINGLE SECTION |
| BODY STYLE | CYLINDRICAL SERVO MOUNTED |
| PILOT DIAMETER | 1.3120 INCHES MINIMUM AND 1.3125 INCHES MAXIMUM |
| PILOT LENGTH | 0.0570 INCHES MINIMUM AND 0.0670 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 1.312 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0730 INCHES MINIMUM |
| BODY DIAMETER | 1.438 INCHES NOMINAL |
| BODY LENGTH | 0.922 INCHES MAXIMUM |
| MOUNTING LIP DIAMETER | 1.4320 INCHES MINIMUM AND 1.4420 INCHES MAXIMUM |
| MOUNTING LIP DEPTH | 0.0880 INCHES MINIMUM AND 0.0980 INCHES MAXIMUM |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, FLUTED |
| SHAFT DIAMETER | 0.240 INCHES MINIMUM AND 0.241 INCHES MAXIMUM |
| SHAFT LENGTH | 0.469 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 360.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CONTINUOUS MOTION |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 330.0 NOMINAL |
| MOUNTING METHOD | CLAMP RING |
| TERMINAL TYPE AND QUANTITY | 3 TURRET |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | TERMINALS OPTIONAL,SOLDER COATED 40-70 PCT TIN CONTENT OR GOLD PLATE APPROX 0.00003 IN. THK OVER SILVER PLATE APPROX 0.0005 IN. THK |
| OVERALL LENGTH | 1.391 INCHES MINIMUM AND 1.453 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.781 INCHES NOMINAL |
