NSN 5905-00-065-5716
Part Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-065-5716 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 1391050, 5905-00-065-5716, 00-065-5716, 5905000655716, 000655716
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-065-5716 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

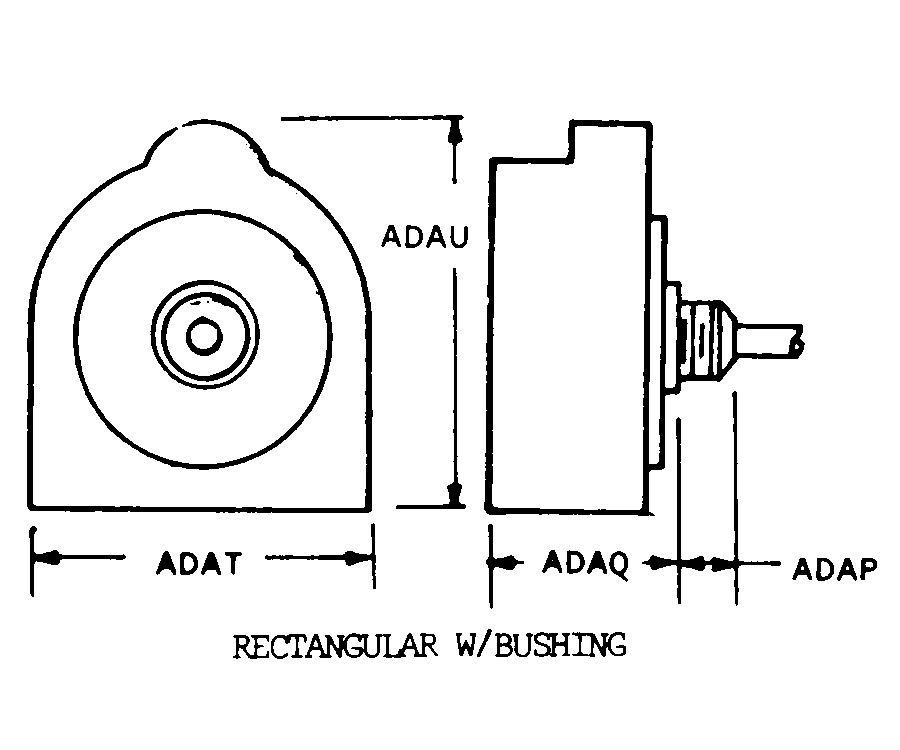

RECTANGULAR W/BUSHING
ROUND, SLOTTED
Cross Reference | NSN 5905-00-065-5716
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1391050 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5905-00-065-5716
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 5.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO +10.0 SINGLE SECTION |
| SHAFT BEARING TYPE | SLEEVE |
| MAXIMUM STARTING TORQUE | 4.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 4.00 INCH-OUNCES |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.3 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 40.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 85.0 SINGLE SECTION |
| BODY STYLE | RECTANGULAR W/BUSHING |
| BODY LENGTH | 0.547 INCHES NOMINAL |
| BODY WIDTH | 0.781 INCHES NOMINAL |
| BODY HEIGHT | 0.781 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.391 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, SLOTTED |
| SHAFT DIAMETER | 0.047 INCHES NOMINAL |
| SHAFT LENGTH | 0.469 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 300.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 300.0 NOMINAL |
| NONTURN DEVICE LOCATION | AT 9 OCLOCK |
| NONTURN DEVICE RADIUS | 0.125 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.250 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | LOWER ADJACENT SIDE TWO ROWS |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| OVERALL LENGTH | 1.016 INCHES NOMINAL |
| OVERALL HEIGHT | 0.781 INCHES NOMINAL |
| OVERALL WIDTH | 0.781 INCHES NOMINAL |
| CUBIC MEASURE | 0.619 CUBIC INCHES |
