NSN 5905-00-088-1516
Part Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-088-1516 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 30329112, 3032911-2, 5905-00-088-1516, 00-088-1516, 5905000881516, 000881516
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 29, 1967 | 00-088-1516 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES
CYLINDRICAL BUSHING MOUNTED

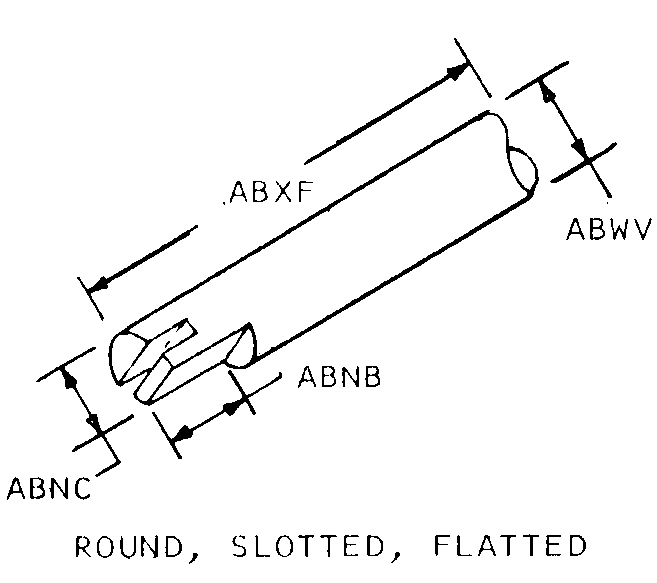

ROUND, SLOTTED, FLATTED
Cross Reference | NSN 5905-00-088-1516
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3032911-2 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5905-00-088-1516
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 2.5 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -20.0 TO +20.0 SINGLE SECTION |
| MAXIMUM STOP TORQUE | 80.00 INCH-OUNCES |
| MAXIMUM STARTING TORQUE | 6.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 6.00 INCH-OUNCES |
| RESISTANCE TEMP CHARACTERISTIC RANGE PER SECTION IN PERCENT | -3.0 TO +0.0 -55 DEG CELSIUS SINGLE SECTION AND -5.0 TO +10.0 -25 DEG CELSIUS SINGLE SECTION AND -5.0 TO +10.0 25 DEG CELSIUS SINGLE SECTION AND +0.0 TO +3.0 120 DEG CELSIUS SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.25 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 120.0 SINGLE SECTION |
| BODY STYLE | CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 0.719 INCHES MINIMUM AND 0.781 INCHES MAXIMUM |
| BODY LENGTH | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| MOUNTING BUSHING LENGTH | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, SLOTTED, FLATTED |
| FIRST FLAT LENGTH | 0.540 INCHES MINIMUM AND 0.600 INCHES MAXIMUM |
| FLAT HEIGHT | 0.100 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| SHAFT DIAMETER | 0.124 INCHES MINIMUM AND 0.126 INCHES MAXIMUM |
| SHAFT LENGTH | 0.850 INCHES MINIMUM AND 0.910 INCHES MAXIMUM |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 295.0 MINIMUM AND 305.0 MAXIMUM |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 295.0 MINIMUM AND 305.0 MAXIMUM |
| NONTURN DEVICE LOCATION | AT 3 OCLOCK AND AT 9 OCLOCK |
| NONTURN DEVICE RADIUS | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | HUMIDITY PROOF |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 82577-3032911 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| CUBIC MEASURE | 0.155 CUBIC INCHES |
| FRAGILITY FACTOR | MODERATELY RUGGED |
