NSN 5905-00-089-9527
Part Details | PRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-089-9527 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION.
Alternate Parts: 2001092302, 215481035, 215-48103-5, 5905-00-089-9527, 00-089-9527, 5905000899527, 000899527
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 07, 1967 | 00-089-9527 | 37408 ( RESISTOR, VARIABLE, WIRE WOUND, PRECISION ) |
REFERENCE DRAWINGS & PICTURES

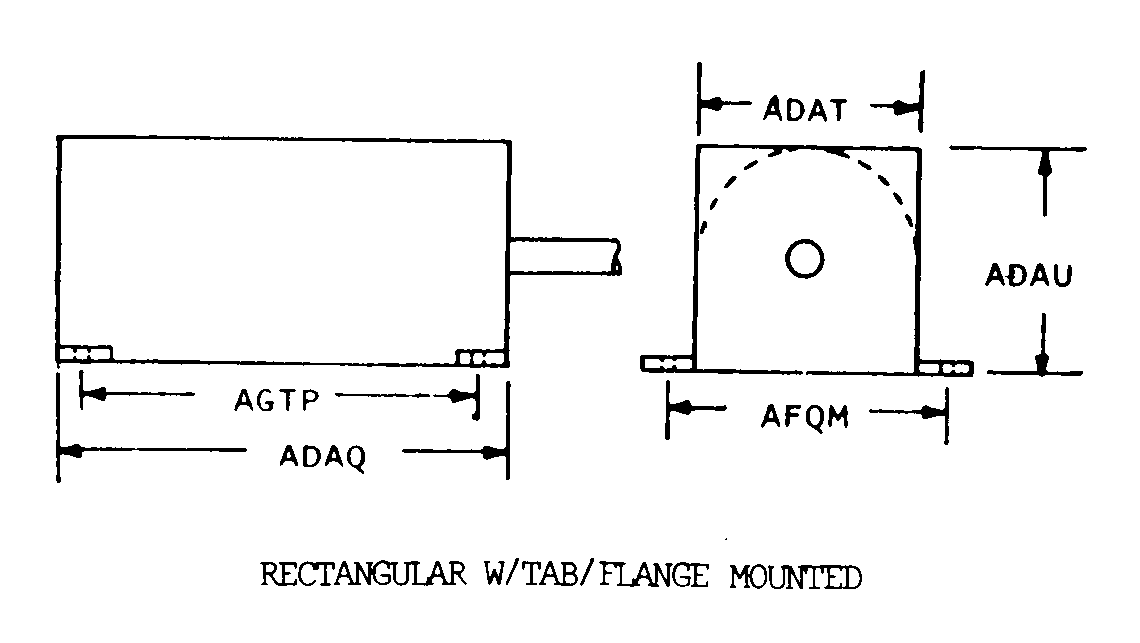

RECTANGULAR W/TAB/FLANGE MOUNTED

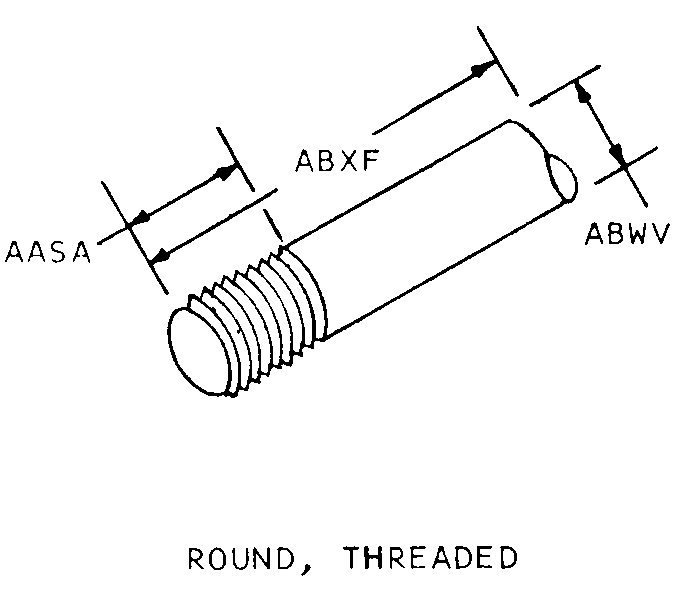

ROUND, THREADED
Cross Reference | NSN 5905-00-089-9527
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2001092302 | 80294 | BOURNS INSTRUMENTS INC |
| 215-48103-5 | 80378 | TRIUMPH AEROSTRUCTURES, LLCDBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Technical Data | NSN 5905-00-089-9527
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 2 |
| ELECTRICAL RESISTANCE PER SECTION | 12.5 KILOHMS ALL SECTIONS |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO +10.0 ALL SECTIONS |
| FUNCTION CHARACTERISTIC PER SECTION | ALL SECTIONS LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.50 TO +0.50 ALL SECTIONS |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.1 FREE AIR ALL SECTIONS |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 125.0 ALL SECTIONS |
| FIXED TAP QUANTITY PER SECTION | 1 ALL SECTIONS |
| TAP LOCATION FROM CCW TERMINAL PER SECTION IN OHMS | 6250.0 ALL SECTIONS |
| BODY STYLE | RECTANGULAR W/TAB/FLANGE MOUNTED |
| BODY LENGTH | 6.110 INCHES NOMINAL |
| BODY WIDTH | 0.950 INCHES MAXIMUM |
| BODY HEIGHT | 1.930 INCHES MAXIMUM |
| MOUNTING HOLE/STUD CIRCLE DIAMETER | 0.201 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.440 INCHES NOMINAL |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 5.550 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, THREADED |
| THREAD LENGTH | 0.900 INCHES MINIMUM |
| SHAFT DIAMETER | 0.188 INCHES NOMINAL |
| SHAFT LENGTH | 4.830 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 0.201 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 8 WIRE LEAD |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 80378-215-48103-5 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| OVERALL LENGTH | 11.580 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES MAXIMUM |
