NSN 5905-00-097-7402
Part Details | THERMAL RESISTOR
5905-00-097-7402 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Alternate Parts: 2936C22, 293-6C22, 44001ENCASED, 5905-00-097-7402, 00-097-7402, 5905000977402, 000977402
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 22, 1968 | 00-097-7402 | 00309 ( RESISTOR, THERMAL ) |
REFERENCE DRAWINGS & PICTURES

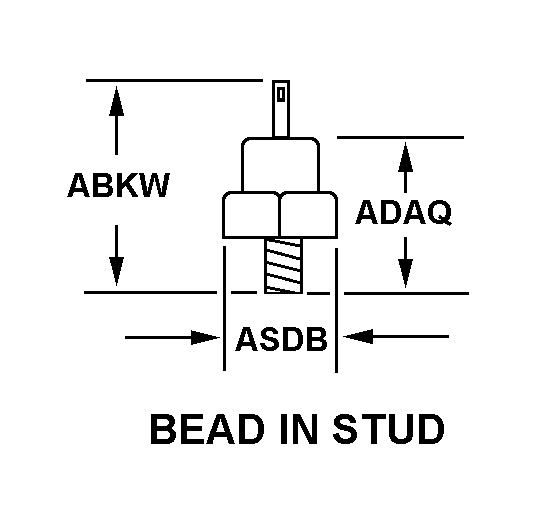

BEAD IN STUD
Cross Reference | NSN 5905-00-097-7402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 293-6C22 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
| 44001ENCASED | 97794 | YSI INCORPORATEDDBA YELLOW SPRINGS INTERNATIONAL |
Technical Data | NSN 5905-00-097-7402
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 100.000 OHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | M1.5/P1.5 |
| STYLE DESIGNATOR | BEAD IN STUD |
| OVERALL HEIGHT | 1.253 INCHES MAXIMUM |
| BODY LENGTH | 0.405 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.430 INCHES NOMINAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.190 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| THREAD LENGTH | 0.438 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
