NSN 5905-00-098-9650
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-098-9650 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: RE1214, TRV18K1, 1750S153, 7466036, 746-6036, 5905-00-098-9650, 00-098-9650, 5905000989650, 000989650
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-098-9650 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

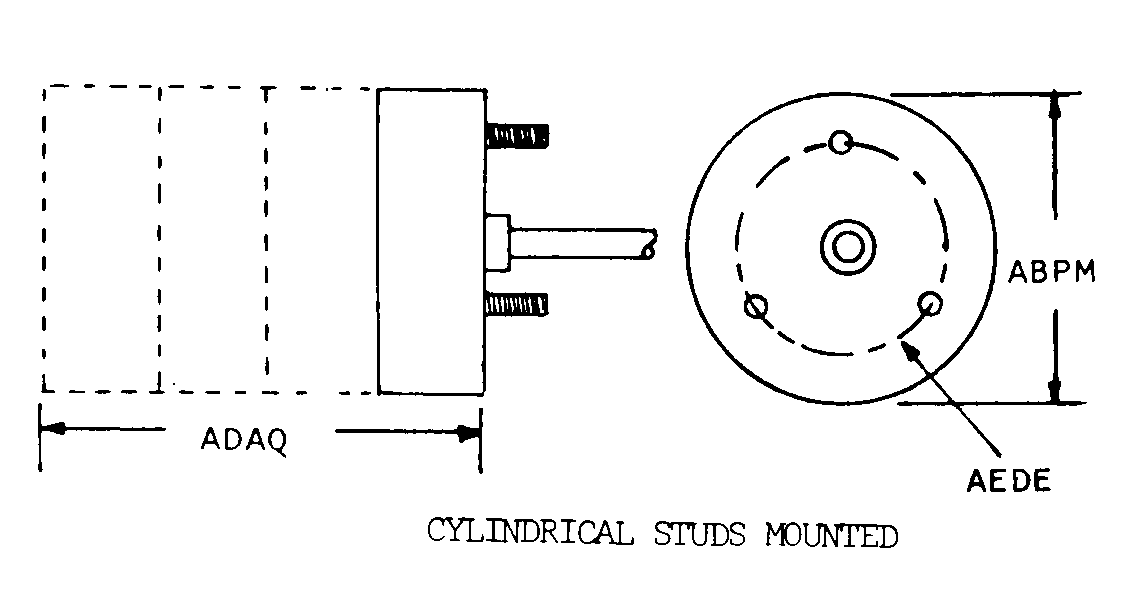

CYLINDRICAL STUDS MOUNTED
ROUND
Cross Reference | NSN 5905-00-098-9650
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RE1214 | 80249 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| TRV18K1 | 99957 | BOWMAR/TIC INCSUB OF BOWMAR INSTRUMENT CORP |
| 1750S153 | 93322 | GE AVIATION SYSTEMS LLCDBA GE AVIATION |
| 746-6036 | 19176 | SERVO INSTRUMENT CORPORATION |
Technical Data | NSN 5905-00-098-9650
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 4 |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO +10.0 ALL SECTIONS |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 2.0 FREE AIR ALL SECTIONS |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 ALL SECTIONS |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 120.0 ALL SECTIONS |
| BODY STYLE | CYLINDRICAL STUDS MOUNTED |
| BODY DIAMETER | 1.750 INCHES NOMINAL |
| BODY LENGTH | 2.540 INCHES NOMINAL |
| MOUNTING HOLE/STUD CIRCLE DIAMETER | 0.875 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.594 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 300.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 300.0 NOMINAL |
| MOUNTING METHOD | THREADED HOLE |
| MOUNTING FACILITY QUANTITY | 3 |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| SCREW THREAD DIAMETER | 0.138 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| TERMINAL TYPE AND QUANTITY | 12 TURRET |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
