NSN 5910-00-052-1639
Part Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-052-1639 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: MILC516, MILC5-16, CM90FR103JM1, 5910-00-052-1639, 00-052-1639, 5910000521639, 000521639
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-052-1639 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

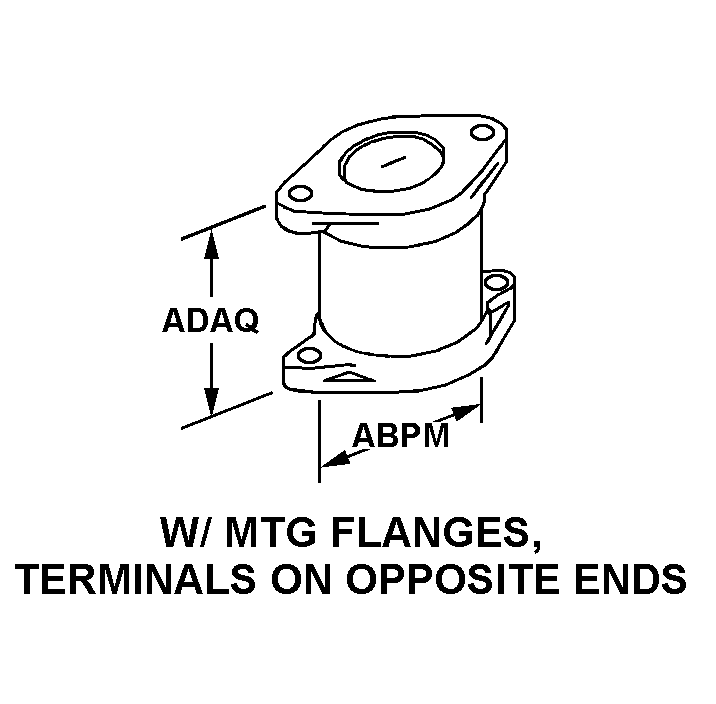

W/MTG FLANGES, TERMINALS ON OPPOSITE ENDS
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-052-1639
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILC5-16 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| CM90FR103JM1 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5910-00-052-1639
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 10000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -5.00 TO +5.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 10000.0 AC-PEAK SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | +0.0 TO +70.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 70.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG FLANGES, TERMINALS ON OPPOSITE ENDS |
| BODY LENGTH | 5.750 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 FLANGE |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.380 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 5.750 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 7500.0 MEGOHMS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 0.0010 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 81349-MIL-C-5 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| MAXIMUM RF CURRENT RATING AT HIGHEST RATED FREQUENCY IN RMS AMPS | 30.0 |
| HIGHEST FREQUENCY AT WHICH RF CURRENT RATING APPLIES IN KILOHERTZ | 3000.0 |
| MAXIMUM RF CURRENT RATING AT LOWEST RATED FREQUENCY IN RMS AMPS | 18.0 |
| LOWEST FREQUENCY AT WHICH RF CURRENT RATING APPLIES IN KILOHERTZ | 100.0 |
| INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 10.0 MEGOHM-MICROFARADS |
