NSN 5910-00-052-4838
Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-052-4838 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: G104810001, G104-810-001, 17E152104B, 17E152-104B, 426006V10, 426-006V-10, G104810001, G104-810-001, 5910-00-052-4838, 00-052-4838, 5910000524838, 000524838
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-052-4838 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

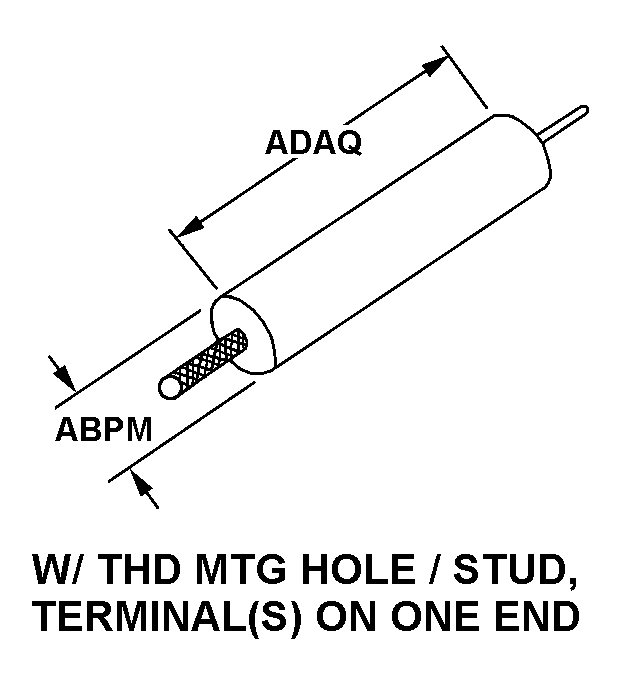

W/THD MTG HOLE/STUD, TERMINAL(S) ON ONE END
ELECTRODE(S) GROUNDED TO CASE
Cross Reference | NSN 5910-00-052-4838
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G104-810-001 | 0D0D0 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 17E152-104B | 58364 | BYCAP, INC. |
| 426-006V-10 | 72928 | GULTON INDUSTRIES INC GUDEMAN DIV |
| G104-810-001 | 88818 | KEARFOTT CORPORATIONDBA KEARFOTT |
Technical Data | NSN 5910-00-052-4838
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.100 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 1500.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 105.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD MTG HOLE/STUD, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 0.670 INCHES NOMINAL |
| BODY LENGTH | 1.562 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 1 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 2.250 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.016 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| CASE INSULATION MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED MOUNTING STUDS |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SOLDER |
