NSN 5910-00-064-6006
Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-064-6006 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: NFT1002, NFT100-2, NFT1002, NFT100-2, 5910-00-064-6006, 00-064-6006, 5910000646006, 000646006
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-064-6006 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

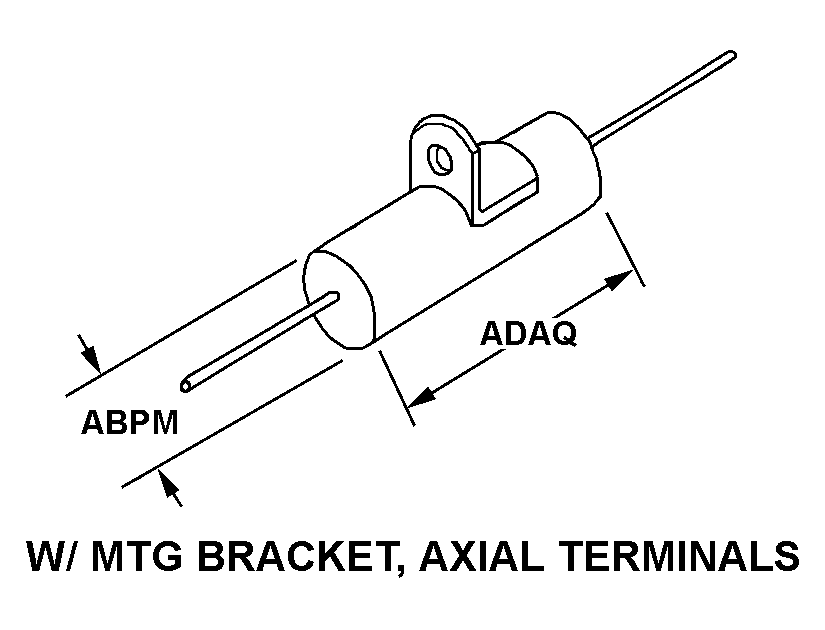

W/MTG BRACKET, AXIAL TERMINALS
FEEDTHROUGH
Cross Reference | NSN 5910-00-064-6006
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NFT100-2 | 14655 | CORNELL-DUBILIER ELECTRONICS |
| NFT100-2 | 00853 | CORNELL-DUBILIER MARKETING, INC. |
Technical Data | NSN 5910-00-064-6006
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 2.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +30.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 100.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG BRACKET, AXIAL TERMINALS |
| BODY DIAMETER | 0.750 INCHES NOMINAL |
| BODY LENGTH | 1.438 INCHES MAXIMUM |
| BODY WIDTH | 1.090 INCHES NOMINAL |
| BODY HEIGHT | 1.090 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | FEEDTHROUGH |
| TERMINAL TYPE AND QUANTITY | 1 PIN AND 1 INSULATED WIRE LEAD W/TERMINAL LUG |
| TERMINAL LENGTH | 6.812 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.096 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.148 INCHES MINIMUM AND 0.154 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.812 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | MOUNTING HARDWARE |
