Part Details | PAPER-PLASTIC DIELECTRIC METALLIZED FIXED CAPACITOR
5910-00-066-1489 A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated.
Alternate Parts: P30ZNB0.5UF400VDCP10M3PCT, 5004RBSPECIAL, 5910-00-066-1489, 00-066-1489, 5910000661489, 000661489
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-066-1489 | 31959 ( CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

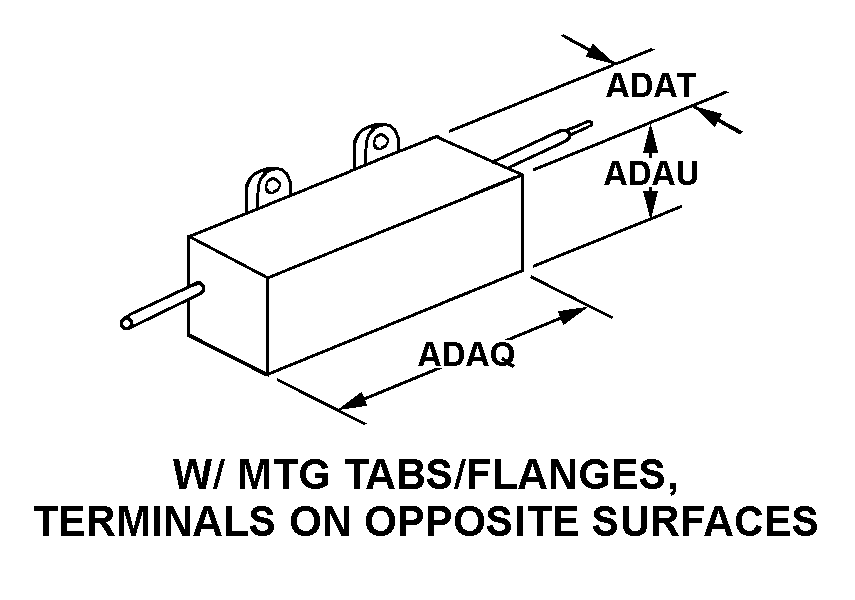

W/MTG TABS/FLANGES, TERMINALS ON OPPOSITE SURFACES
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-066-1489
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P30ZNB0.5UF400VDCP10M3PCT | 00656 | AEROVOX CORP. |
| 5004RBSPECIAL | 06141 | L3 AVIATION PRODUCTS, INC. |
Technical Data | NSN 5910-00-066-1489
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.500 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -3.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 400.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -65.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG TABS/FLANGES, TERMINALS ON OPPOSITE SURFACES |
| BODY LENGTH | 1.750 INCHES NOMINAL |
| BODY WIDTH | 0.750 INCHES NOMINAL |
| BODY HEIGHT | 1.000 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.750 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 1.062 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.125 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 2000.0 MEGOHM-MICROFARADS |
| POWER FACTOR AT REFERENCE TEMP IN PERCENT | 1.0000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SOLDER |
| INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 20.0 MEGOHM-MICROFARADS |
