NSN 5910-00-066-6854
Part Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-066-6854 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 9D52050, 9D52050, 5910-00-066-6854, 00-066-6854, 5910000666854, 000666854
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-066-6854 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

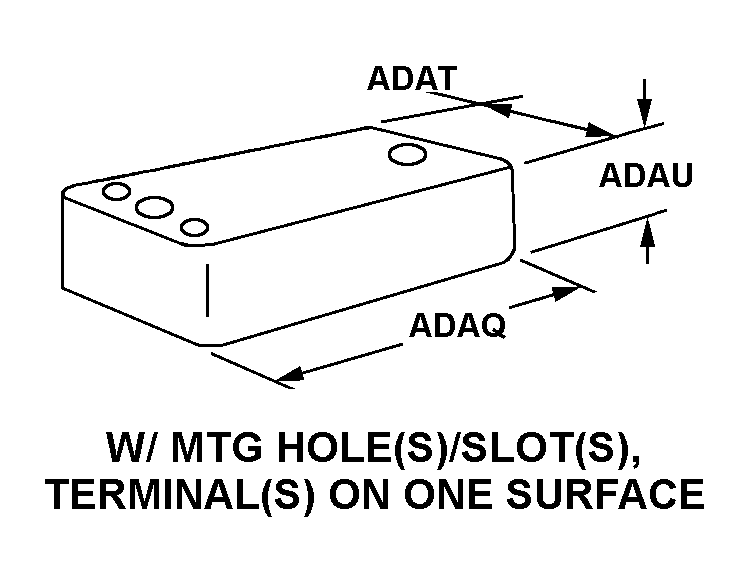

W/MTG HOLE(S)/SLOT(S), TERMINAL(S) ON ONE SURFACE
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-066-6854
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9D52050 | 14655 | CORNELL-DUBILIER ELECTRONICS |
| 9D52050 | 00853 | CORNELL-DUBILIER MARKETING, INC. |
Technical Data | NSN 5910-00-066-6854
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 6000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 2500.0 DC SINGLE SECTION |
| BODY STYLE | W/MTG HOLE(S)/SLOT(S), TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 1.750 INCHES NOMINAL |
| BODY WIDTH | 1.312 INCHES NOMINAL |
| BODY HEIGHT | 0.734 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 THREADED HOLE |
| CASE MATERIAL | PLASTIC |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MAXIMUM RF CURRENT RATING AT HIGHEST RATED FREQUENCY IN RMS AMPS | 7.0 |
| HIGHEST FREQUENCY AT WHICH RF CURRENT RATING APPLIES IN KILOHERTZ | 3000.0 |
| MAXIMUM RF CURRENT RATING AT LOWEST RATED FREQUENCY IN RMS AMPS | 1.12 |
| LOWEST FREQUENCY AT WHICH RF CURRENT RATING APPLIES IN KILOHERTZ | 100.0 |
