NSN 5910-00-067-5166
Part Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-067-5166 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 530106302, 530106-302, 108453, 5910-00-067-5166, 00-067-5166, 5910000675166, 000675166
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 29, 1967 | 00-067-5166 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |

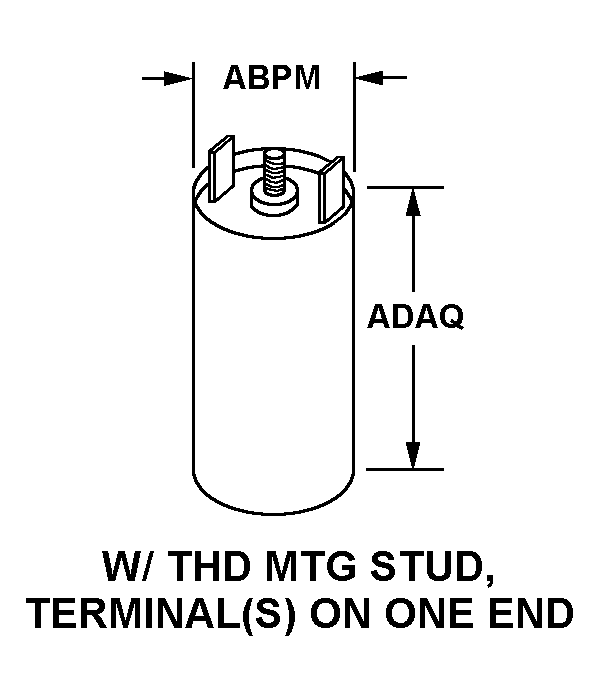

REFERENCE DRAWINGS & PICTURES
W/THD MTG STUD, TERMINAL(S) ON ONE END
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-067-5166
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 530106-302 | 02294 | MARATHONNORCO AEROSPACE, INC.DBA CHRISTIE ELECTRIC |
| 108453 | 02294 | MARATHONNORCO AEROSPACE, INC.DBA CHRISTIE ELECTRIC |
Technical Data | NSN 5910-00-067-5166
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 36000.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -0.00 TO +100.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 45.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -20.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD MTG STUD, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 3.016 INCHES NOMINAL |
| BODY LENGTH | 5.875 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| TERMINAL HEIGHT FROM BODY | 0.625 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 1.250 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| CASE INSULATION MATERIAL | PLASTIC |
| CAPACITIVE ELECTRODE MATERIAL | ALUMINUM |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| ANODE TYPE | ETCHED FOIL |
