NSN 5910-00-068-3953
Part Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-068-3953 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: C5705, 60900101A0102K, 609-00101A0102K, 60900101A0102K, 609-001-01A0-102K, M7E102KN, M7-E102KN, 5910-00-068-3953, 00-068-3953, 5910000683953, 000683953
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 13, 1967 | 00-068-3953 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

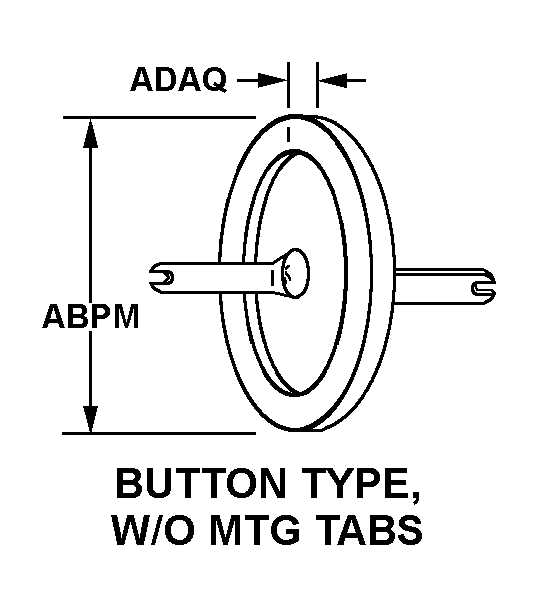

BUTTON TYPE, W/O MTG TABS
ELECTRODE(S) GROUNDED TO CASE
Cross Reference | NSN 5910-00-068-3953
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C5705 | 09017 | EDO |
| 609-00101A0102K | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 609-001-01A0-102K | 59660 | TUSONIX, INC. |
| M7-E102KN | 71313 | VIKING TECHNOLOGIES, LTD. |
Technical Data | NSN 5910-00-068-3953
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | -20.0 TO +100.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | BUTTON TYPE, W/O MTG TABS |
| BODY DIAMETER | 0.624 INCHES NOMINAL |
| BODY LENGTH | 0.077 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 1 THREADED HOLE |
| CASE MATERIAL | PLASTIC |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
