NSN 5910-00-069-0464
Part Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-069-0464 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 505499, 505-499, 505499, 505-499, 5910-00-069-0464, 00-069-0464, 5910000690464, 000690464
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-069-0464 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

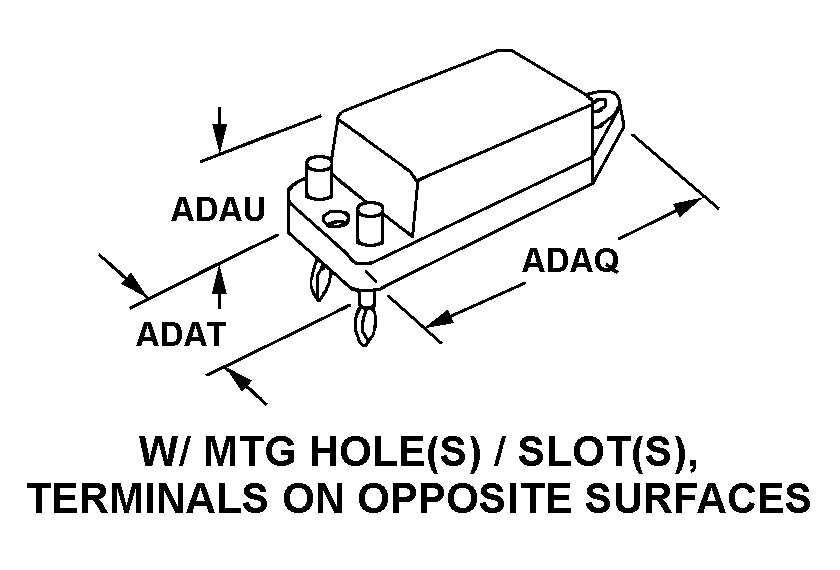

W/MTG HOLE(S)/SLOT(S), TERMINALS ON OPPOSITE SURFACES
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-069-0464
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 505-499 | 24655 | GENRAD INC |
| 505-499 | 62015 | IET LABS., INC.DBA IET LABS |
Technical Data | NSN 5910-00-069-0464
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 99700.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO +20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG HOLE(S)/SLOT(S), TERMINALS ON OPPOSITE SURFACES |
| BODY LENGTH | 3.843 INCHES NOMINAL |
| BODY WIDTH | 2.093 INCHES NOMINAL |
| BODY HEIGHT | 1.640 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| CASE MATERIAL | PLASTIC |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
