NSN 5910-00-069-0653
Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-069-0653 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: AR36001, A232326, 7015, 10116430239, 10-1164-30-23-9, C0134L, C0134, SCB36001, SC-B-36001, 5910-00-069-0653, 00-069-0653, 5910000690653, 000690653
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 27, 1972 | 00-069-0653 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

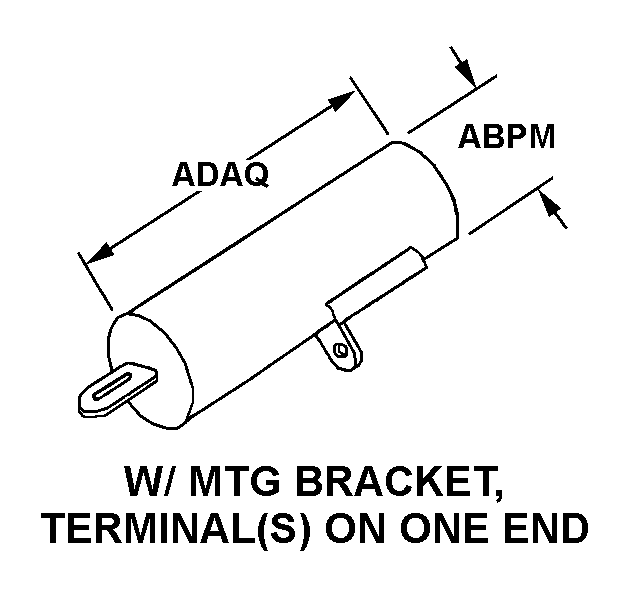

W/MTG BRACKET, TERMINAL(S) ON ONE END
ELECTRODE(S) GROUNDED TO CASE
Cross Reference | NSN 5910-00-069-0653
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AR36001 | 25579 | ARGENT INDUSTRIES INC. |
| A232326 | 72380 | CROSLEY CORP THE |
| 7015 | 72928 | GULTON INDUSTRIES INC GUDEMAN DIV |
| 10-1164-30-23-9 | D1901 | HENSOLDT SENSORS GMBHDIV SEPS |
| C0134L | 36004 | LEWYT CORP |
| C0134 | 3E191 | RAULAND-BORG CORPORATION |
| SC-B-36001 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5910-00-069-0653
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.130 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO +20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 150.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG BRACKET, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 0.562 INCHES NOMINAL |
| BODY LENGTH | 1.438 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 1 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 2.500 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.032 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED MOUNTING STUDS |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SOLDER |
