NSN 5910-00-069-9127
Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-069-9127 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: 360883, 36088-3, EA4068, EA-4068, 360883, 36088-3, 5910-00-069-9127, 00-069-9127, 5910000699127, 000699127
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-069-9127 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |

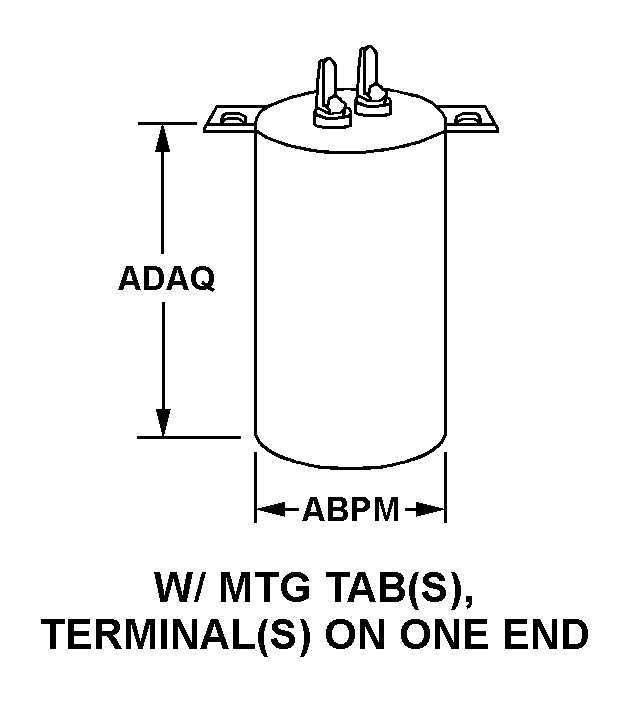

REFERENCE DRAWINGS & PICTURES
W/MTG TAB(S), TERMINAL(S) ON ONE END
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-069-9127
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 36088-3 | 72599 | ALLIEDSIGNAL INCDBA ALLIED-SIGNAL AEROSPACE CO |
| EA-4068 | 12406 | ELPAC ELECTRONICS INC |
| 36088-3 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5910-00-069-9127
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 200.0 AC-RMS SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG TAB(S), TERMINAL(S) ON ONE END |
| BODY DIAMETER | 1.130 INCHES MAXIMUM |
| BODY LENGTH | 2.375 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 0.480 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.165 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.990 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TERMINAL SURFACE TREATMENT | SOLDER |
