NSN 5910-00-070-7994
Part Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-00-070-7994 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 821141, 821-141, 129202, 129-202, FA5C4701, 5910-00-070-7994, 00-070-7994, 5910000707994, 000707994
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-070-7994 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

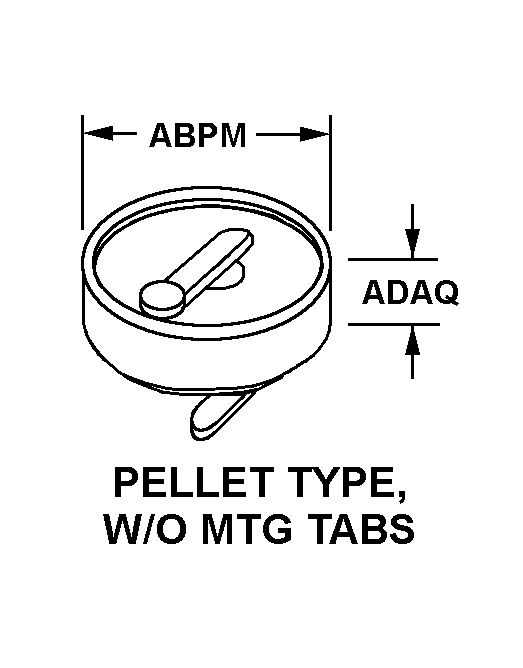

PELLET TYPE, W/O MTG TABS
FEEDTHROUGH
Cross Reference | NSN 5910-00-070-7994
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 821-141 | 01113 | GENERAL INSTRUMENT CORPORATIONDBA MOTOROLA |
| 129-202 | 01113 | GENERAL INSTRUMENT CORPORATIONDBA MOTOROLA |
| FA5C4701 | 01121 | ROCKWELL AUTOMATION, INC. |
Technical Data | NSN 5910-00-070-7994
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 47.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -1.00 TO +1.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | PELLET TYPE, W/O MTG TABS |
| BODY DIAMETER | 0.281 INCHES NOMINAL |
| BODY LENGTH | 0.186 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | FEEDTHROUGH |
| TERMINAL TYPE AND QUANTITY | 1 SOLDER STUD AND 1 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.235 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.093 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.191 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 100000.0 MEGOHMS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 2.0000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
