NSN 5910-00-072-0074

Part Details | PAPER DIELECTRIC FIXED CAPACITOR

5910-00-072-0074 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.

Alternate Parts: A15054TY111, A15054III, A-15054-III, 5910-00-072-0074, 00-072-0074, 5910000720074, 000720074

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUL 20, 196700-072-007400003 ( CAPACITOR, FIXED, PAPER DIELECTRIC )
REFERENCE DRAWINGS & PICTURES

W/O MTG FACILITIES, TERMINAL(S) ON ONE SURFACE

DELTA, CONNECTED, GROUNDED TO CASE

Cross Reference | NSN 5910-00-072-0074
Part Number Cage Code Manufacturer
A15054TY11128199L3 TECHNOLOGIES, INC.DBA L3 HENSCHEL
A-15054-III28199L3 TECHNOLOGIES, INC.DBA L3 HENSCHEL
Technical Data | NSN 5910-00-072-0074
Characteristic Specifications
SECTION QUANTITY3
CAPACITANCE VALUE PER SECTION0.204 MICROFARADS SINGLE SECTION
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION600.0 DC ALL SECTIONS
BODY STYLE W/O MTG FACILITIES, TERMINAL(S) ON ONE SURFACE
BODY LENGTH1.719 INCHES NOMINAL
BODY WIDTH1.008 INCHES NOMINAL
BODY HEIGHT3.224 INCHES NOMINAL

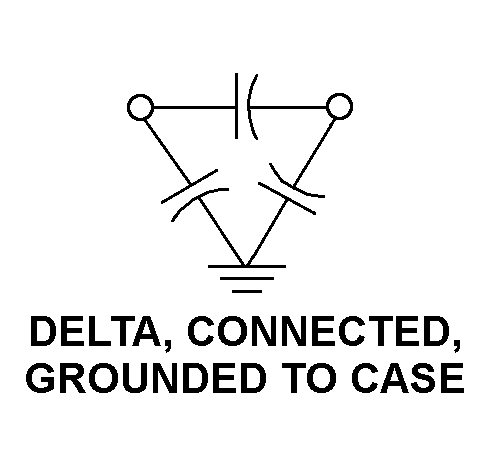

SCHEMATIC DIAGRAM DESIGNATOR DELTA, CONNECTED, GROUNDED TO CASE
TERMINAL TYPE AND QUANTITY3 TAB, SOLDER LUG
TERMINAL LENGTH0.527 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH0.813 INCHES NOMINAL
CASE MATERIAL METAL
RELIABILITY INDICATOR NOT ESTABLISHED
FEATURES PROVIDED MOUNTING HARDWARE
TERMINAL SURFACE TREATMENT SOLDER
