NSN 5910-00-077-1614
Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-077-1614 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: INA493, NFT10011, NFT100-11, NFT10011, NFT100-11, 10885171, 5910-00-077-1614, 00-077-1614, 5910000771614, 000771614
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-077-1614 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

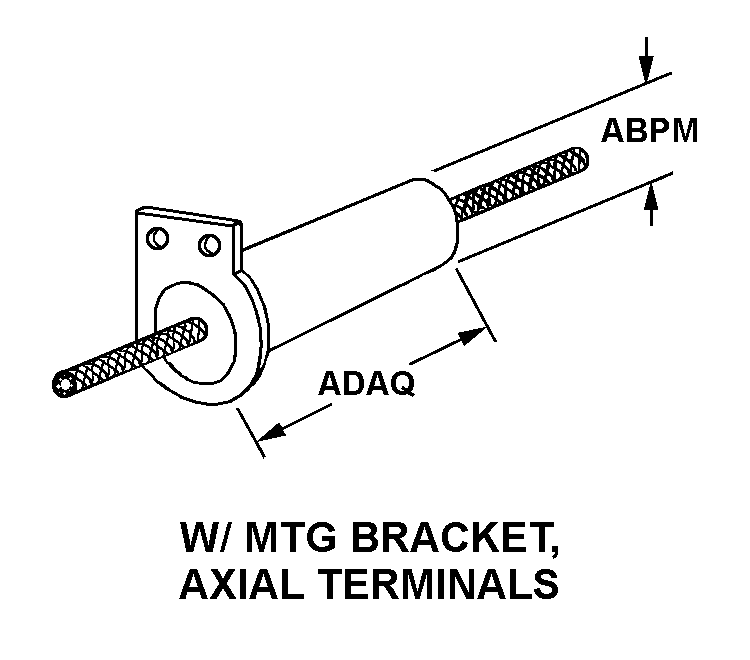

W/MTG BRACKET, AXIAL TERMINALS
FEEDTHROUGH
Cross Reference | NSN 5910-00-077-1614
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| INA493 | 00656 | AEROVOX CORP. |
| NFT100-11 | 14655 | CORNELL-DUBILIER ELECTRONICS |
| NFT100-11 | 00853 | CORNELL-DUBILIER MARKETING, INC. |
| 10885171 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5910-00-077-1614
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 2.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +50.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 160.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG BRACKET, AXIAL TERMINALS |
| BODY DIAMETER | 0.748 INCHES NOMINAL |
| BODY LENGTH | 1.482 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | FEEDTHROUGH |
| TERMINAL TYPE AND QUANTITY | 1 PIN AND 1 WIRE BRAID |
| TERMINAL LENGTH | 0.827 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.094 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.154 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 0.810 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SOLDER |
