NSN 5910-00-082-4818
Part Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-082-4818 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 5910000824818, 65101800A8281J, 651-01800A8-281J, 1219D181B, 65101800A8281J, 651-018-00A8-281J, 5910-00-082-4818, 00-082-4818, 5910000824818, 000824818
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-082-4818 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

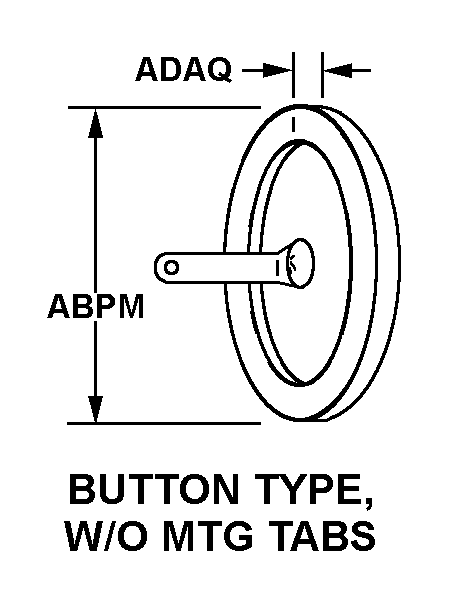

BUTTON TYPE, W/O MTG TABS
FEEDTHROUGH
Cross Reference | NSN 5910-00-082-4818
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5910000824818 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 651-01800A8-281J | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 1219D181B | 00341 | LEXAN INDUSTRIES, INCDBA STRUTHERS ELECTRONICS |
| 651-018-00A8-281J | 59660 | TUSONIX, INC. |
Technical Data | NSN 5910-00-082-4818
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 3.280 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -0.164 TO +0.164 PICOFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | +0.0 TO +70.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | BUTTON TYPE, W/O MTG TABS |
| BODY DIAMETER | 0.440 INCHES NOMINAL |
| BODY LENGTH | 0.130 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | FEEDTHROUGH |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.281 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TERMINAL SURFACE TREATMENT | SOLDER |
