Part Details | PAPER-PLASTIC DIELECTRIC METALLIZED FIXED CAPACITOR
5910-00-086-8569 A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated.
Alternate Parts: EB1Q2205C, 9106522052, 910652-2052, 9104972052, 910497-2052, 5910-00-086-8569, 00-086-8569, 5910000868569, 000868569
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-086-8569 | 31959 ( CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

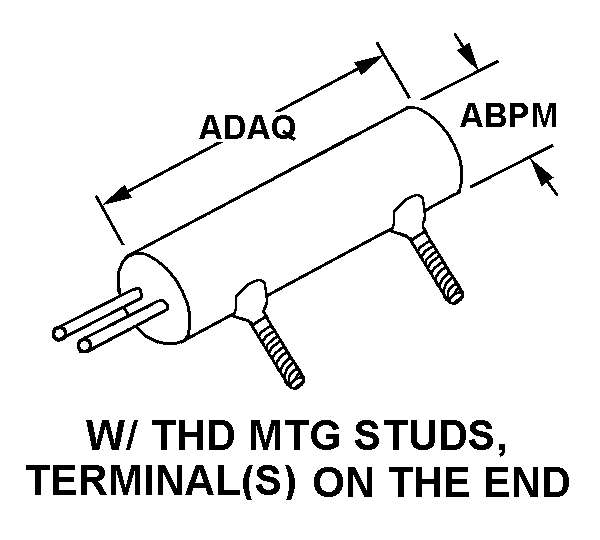

W/THD MTG STUDS, TERMINAL(S) ON THE END
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-086-8569
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EB1Q2205C | 0AM43 | LCR ELECTRONICS, INC. |
| 910652-2052 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
| 910497-2052 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
Technical Data | NSN 5910-00-086-8569
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 2.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -5.00 TO +5.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 200.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD MTG STUDS, TERMINAL(S) ON THE END |
| BODY DIAMETER | 0.562 INCHES NOMINAL |
| BODY LENGTH | 1.875 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.675 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.020 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 0.156 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED MOUNTING STUDS |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 1.125 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 50000.0 MEGOHM-MICROFARADS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 1.000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
