NSN 5910-00-088-8724
Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-088-8724 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: 1145019P1, 87 081, EFX104K20, 5910-00-088-8724, 00-088-8724, 5910000888724, 000888724
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 24, 1967 | 00-088-8724 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

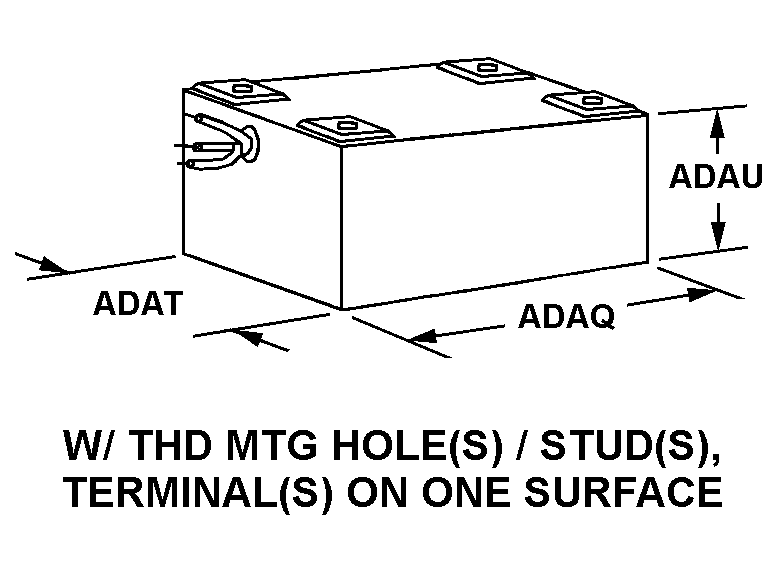

W/THD MTG HOLE(S)/STUD(S) TERMINALS ON ONE SURFACE
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-088-8724
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1145019P1 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 87 081 | 16236 | DLA LAND AND MARITIMEDBA ENGINEERING AND TECHNICAL |
| EFX104K20 | 01884 | EXXELIA DEARBORN, INC.DIV EXXELIA DEARABORN |
Technical Data | NSN 5910-00-088-8724
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.100 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 2000.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD MTG HOLE(S)/STUD(S) TERMINALS ON ONE SURFACE |
| BODY LENGTH | 3.563 INCHES NOMINAL |
| BODY WIDTH | 1.188 INCHES NOMINAL |
| BODY HEIGHT | 1.063 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 1 SOLDER STUD |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.196 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 500000.0 MEGOHMS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 1.000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 12217-1145019P1 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 20000.0 MEGOHMS |
