NSN 5910-00-099-4236
Part Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-099-4236 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 402150012021, 402-1-50012-021, N146545, 5910-00-099-4236, 00-099-4236, 5910000994236, 000994236
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 06, 1972 | 00-099-4236 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
REFERENCE DRAWINGS & PICTURES

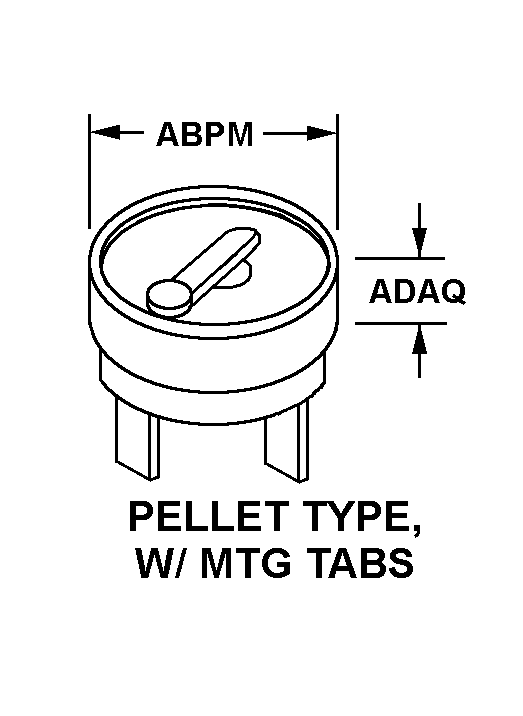

PELLET TYPE, W/MTG TABS
ELECTRODE(S) GROUNDED TO CASE, W/GND TERMINAL
Cross Reference | NSN 5910-00-099-4236
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 402-1-50012-021 | K2523 | EATON AEROSPACE LTD |
| N146545 | K4358 | SAFRAN ELECTRICAL & POWER UK LTD |
Technical Data | NSN 5910-00-099-4236
| Characteristic | Specifications |
|---|---|
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | PELLET TYPE, W/MTG TABS |
| BODY DIAMETER | 0.844 INCHES NOMINAL |
| BODY LENGTH | 0.250 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | ELECTRODE(S) GROUNDED TO CASE, W/GND TERMINAL |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| CASE MATERIAL | METAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
