NSN 5910-00-102-8029
Part Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-102-8029 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: ARG302869, AR-G302869, G302869, 2071498, 20-71498, D39111, 97500, 5910-00-102-8029, 00-102-8029, 5910001028029, 001028029
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 31, 1968 | 00-102-8029 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
REFERENCE DRAWINGS & PICTURES
W/THD BUSHING MTG, TERMINAL(S) ON ONE END

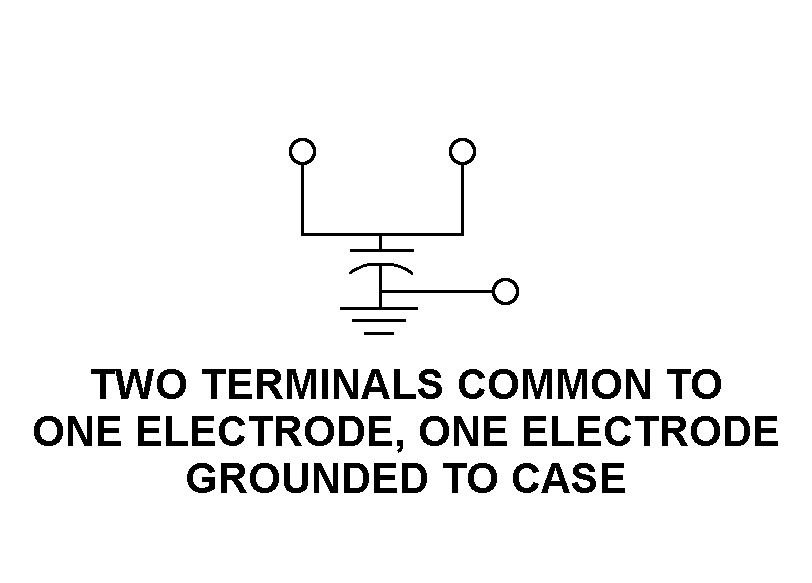

TWO TERMINALS COMMON TO ONE ELECTRODE, ONE ELECTRODE GROUNDED TO CASE
Cross Reference | NSN 5910-00-102-8029
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AR-G302869 | 25579 | ARGENT INDUSTRIES INC. |
| G302869 | 01714 | LUCENT TECHNOLOGIES INCADVANCED TECHNOLOGY SYSTEMS |
| 20-71498 | 90201 | MALLORY SONALERT PRODUCTS INC. |
| D39111 | 56289 | SPRAGUE ELECTRIC COWORLD HQS |
| 97500 | 37942 | YOSEMITE INVESTMENT INCDBA NORTH AMERICAN CAPACITOR CO |
Technical Data | NSN 5910-00-102-8029
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 2 |
| CAPACITANCE VALUE PER SECTION | 1000.000 MICROFARADS ALL SECTIONS |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT ALL SECTIONS |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 15.0 DC ALL SECTIONS |
| NONDERATED OPERATING TEMP | -40.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD BUSHING MTG, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 1.375 INCHES NOMINAL |
| BODY LENGTH | 3.500 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | TWO TERMINALS COMMON TO ONE ELECTRODE, ONE ELECTRODE GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.687 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 0.500 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| CAPACITIVE ELECTRODE MATERIAL | ALUMINUM |
| POWER FACTOR AT REFERENCE TEMP IN PERCENT | 25.000 |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| ANODE TYPE | ETCHED FOIL |
