NSN 5910-00-103-7365
Part Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-103-7365 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 2731250, 2731-250, ED451013F, ED451-01-3F, 5910-00-103-7365, 00-103-7365, 5910001037365, 001037365
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 12, 1968 | 00-103-7365 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
REFERENCE DRAWINGS & PICTURES

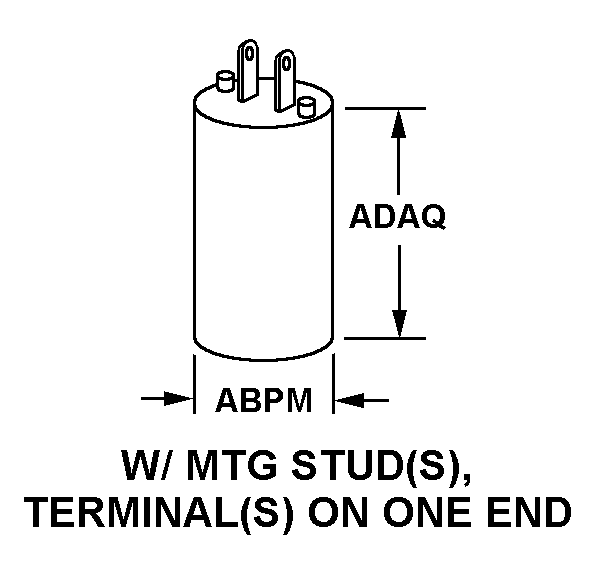

W/MTG STUD(S), TERMINAL(S) ON ONE END
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-103-7365
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2731-250 | 74006 | RELIANCE COMM/TEC CORPLORAIN PRODUCTS DIV |
| ED451-01-3F | 74006 | RELIANCE COMM/TEC CORPLORAIN PRODUCTS DIV |
Technical Data | NSN 5910-00-103-7365
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1800.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +100.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 60.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -20.0 DEG CELSIUS MINIMUM AND 65.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG STUD(S), TERMINAL(S) ON ONE END |
| BODY DIAMETER | 1.469 INCHES NOMINAL |
| BODY LENGTH | 4.500 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 0.688 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED MOUNTING HOLES |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.656 INCHES NOMINAL |
| CAPACITIVE ELECTRODE MATERIAL | ALUMINUM |
| EQUIVALENT SERIES RESISTANCE AT REFERENCE TEMP IN OHMS | 11.00 |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SOLDER |
| ANODE TYPE | PLAIN FOIL |
