NSN 5910-00-106-3626
Part Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-106-3626 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 2416027060, 241-6027-060, 180D105X0075RS, 5910-00-106-3626, 00-106-3626, 5910001063626, 001063626
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 26, 1968 | 00-106-3626 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
REFERENCE DRAWINGS & PICTURES

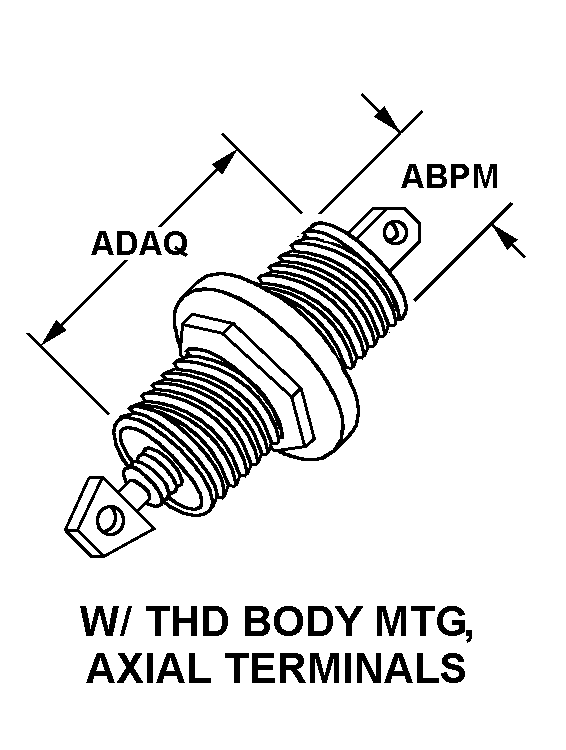

W/THD BODY MTG, AXIAL TERMINALS
FEEDTHROUGH
Cross Reference | NSN 5910-00-106-3626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 241-6027-060 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 180D105X0075RS | 56289 | SPRAGUE ELECTRIC COWORLD HQS |
Technical Data | NSN 5910-00-106-3626
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO +20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 75.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -80.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD BODY MTG, AXIAL TERMINALS |
| BODY DIAMETER | 0.312 INCHES NOMINAL |
| BODY LENGTH | 0.689 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | FEEDTHROUGH |
| CONTINUOUS CURRENT RATING IN AMPS | 5.0 |
| TERMINAL TYPE AND QUANTITY | 2 INSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.250 INCHES MINIMUM AND 1.750 INCHES MAXIMUM |
| TERMINAL DIAMETER | 0.025 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| CAPACITIVE ELECTRODE MATERIAL | TANTALUM |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 3.000 |
| DC LEAKAGE AT REFERENCE TEMP | 2.500 MICROAMPERES |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
